New Stock

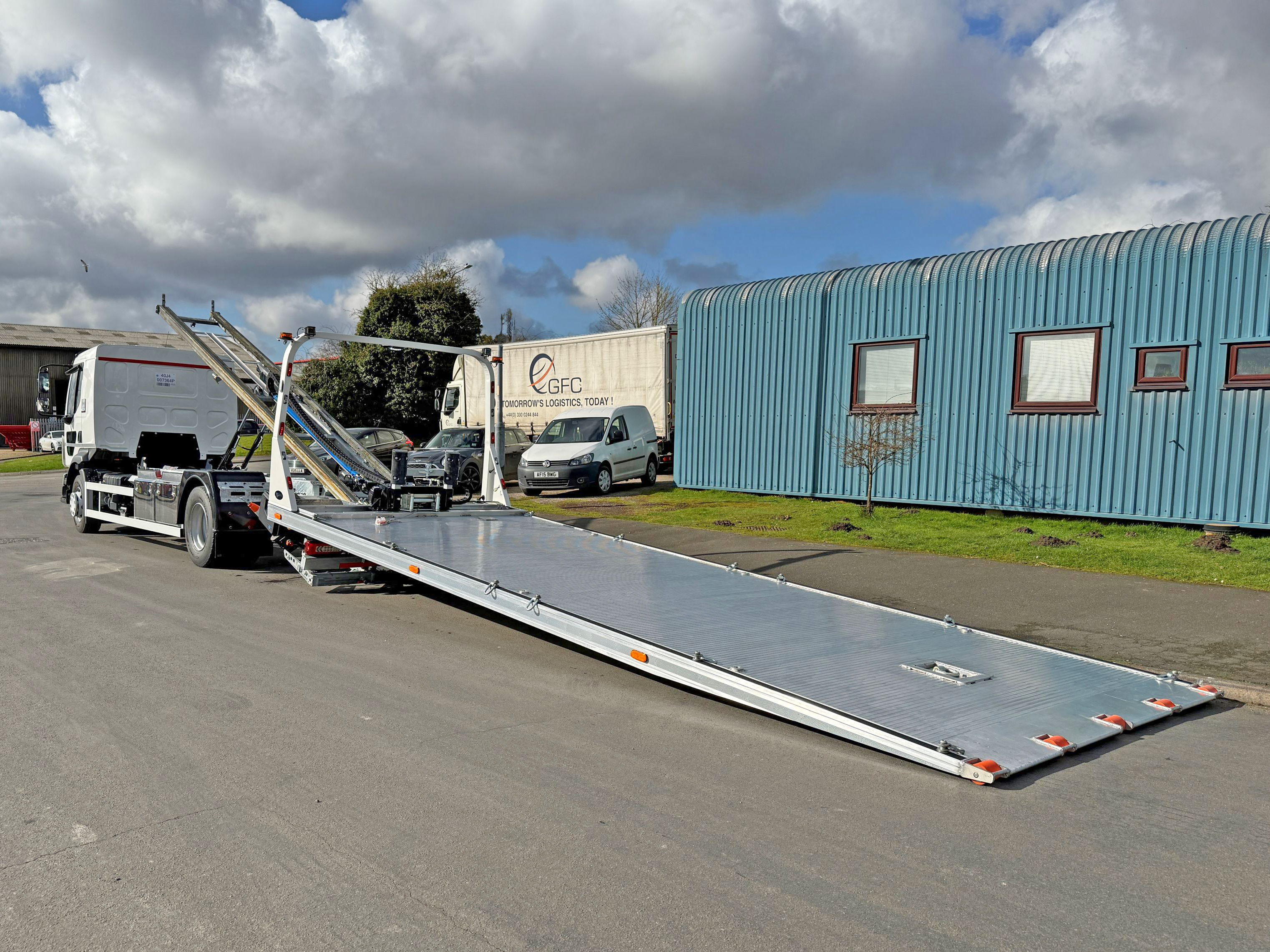

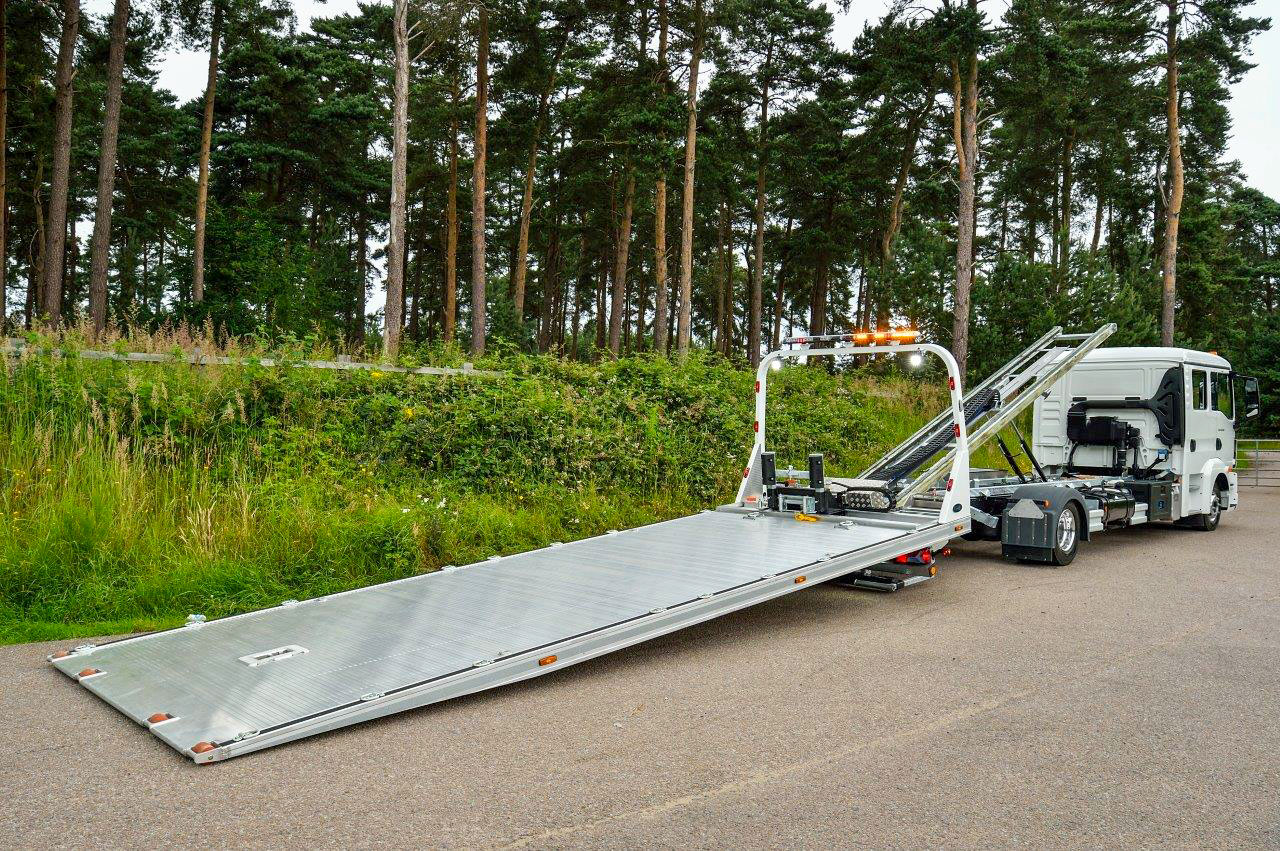

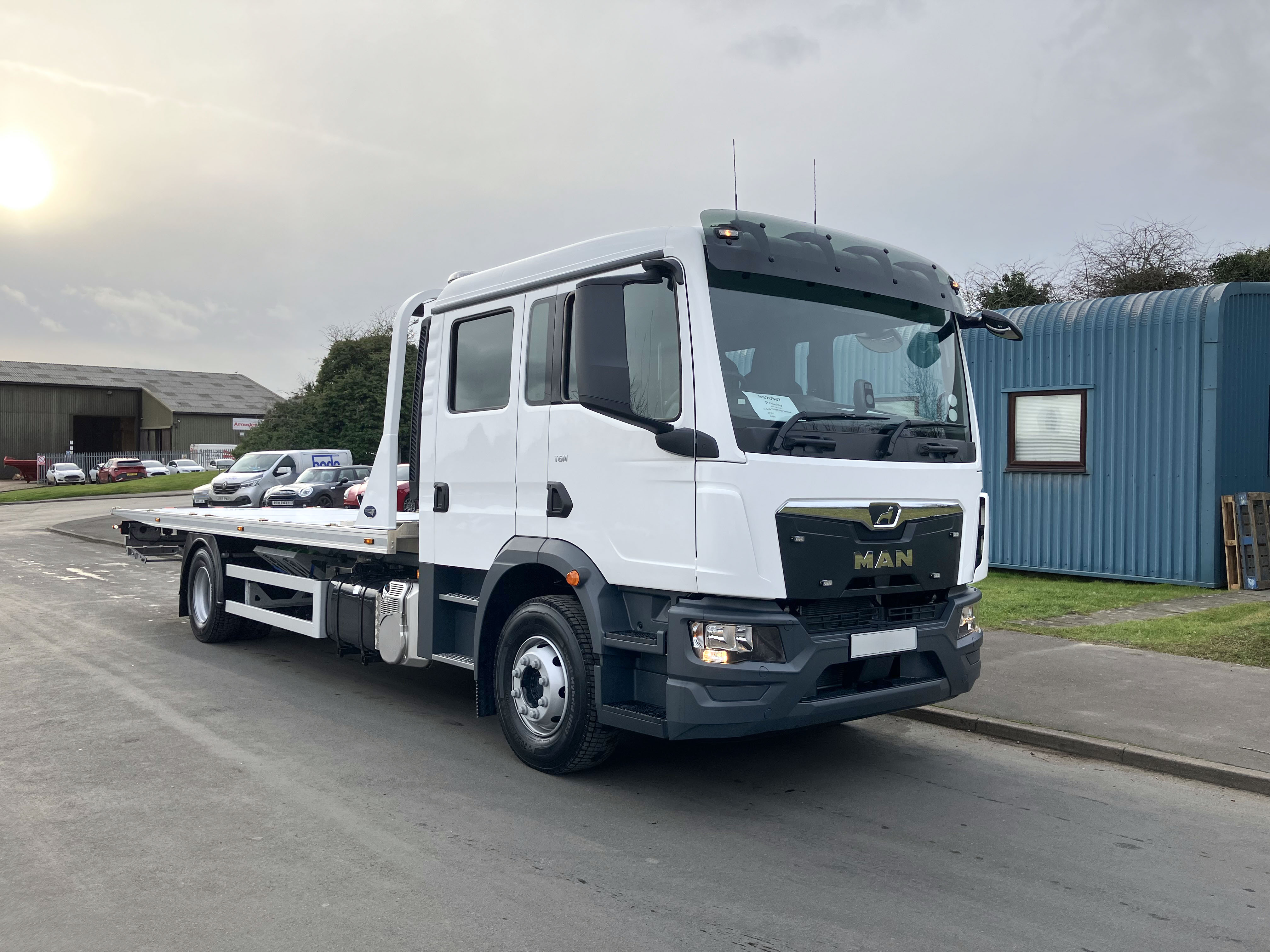

MAN 12.250 Crew Cab – Chassis ETA  April 2024

12T MAN Crew Cab Chassis With Automatic Gearbox And Rear Air Suspension, To Be Fitted With 5T VLA, Galvanised Subframe & Tilt-Frame, Hooped Flyer, Slimline LED Beacon With Duplicated Rear Vehicle Lights, 4 x LED Work Lights, 2 x Chassis Mounted Plastic Locker Boxes, 2t Capacity 2nd Car Lift With Fold Over Wheel Grids, Trailer Board, Tow Attachment For 2nd Car Lift, 7 Pin Electrical Socket Reduced To 12v, Manually Sliding 8,000lb Hydraulic Winch, Low Pull Attachment For 2nd Car Lift, Radio Remote Control For Winch And Body Functions With Cab Mounted Holder-Buzzer & Charger, 4 x Side Winching Points c/w Removable Side Winch Capstan.

With Sufficient Notice The Proposed Specification May Be Adapted To Meet Your Specific Needs Or Requirements. Call One Of Our Friendly Sales Team Today Who Will Be Happy To Help.

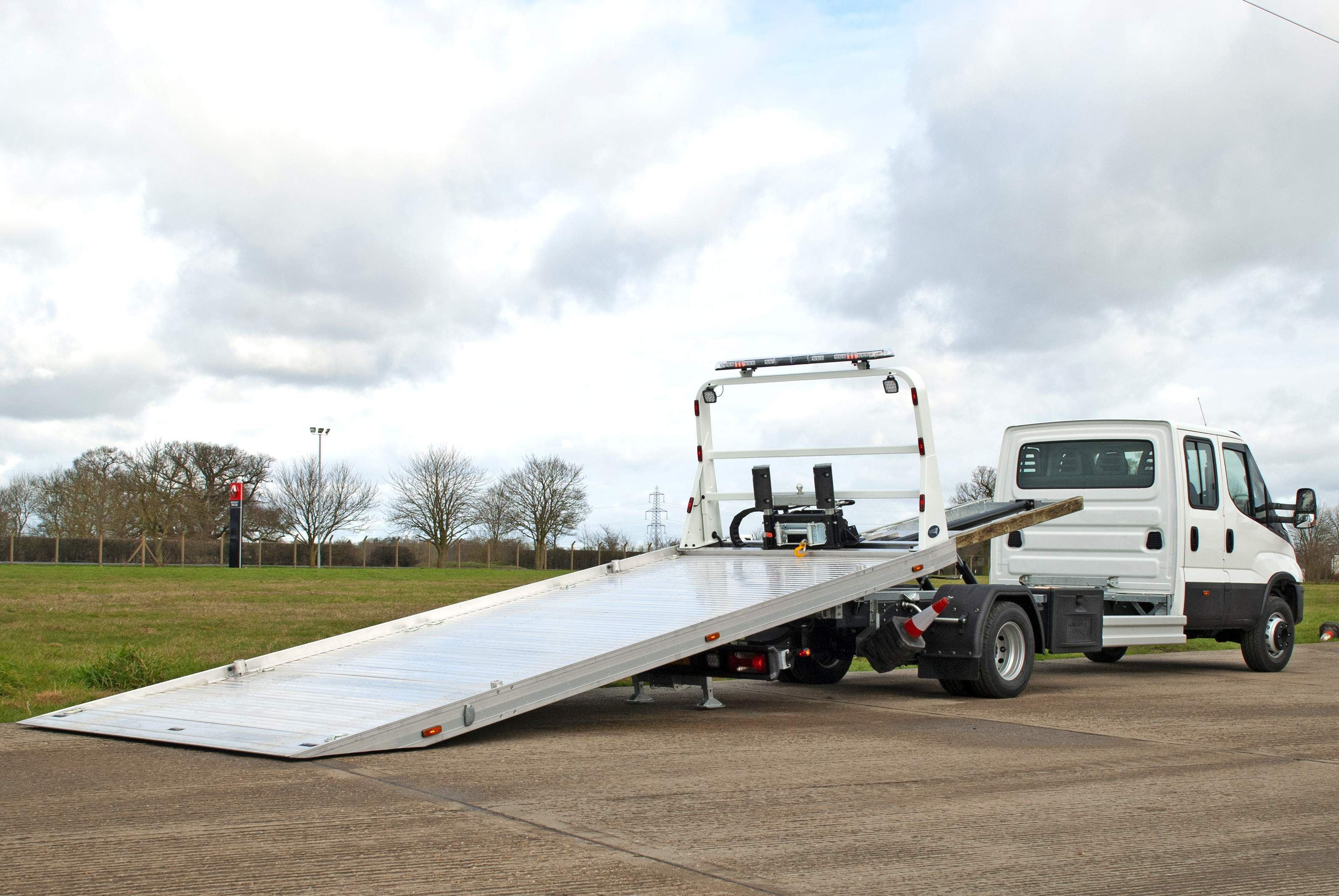

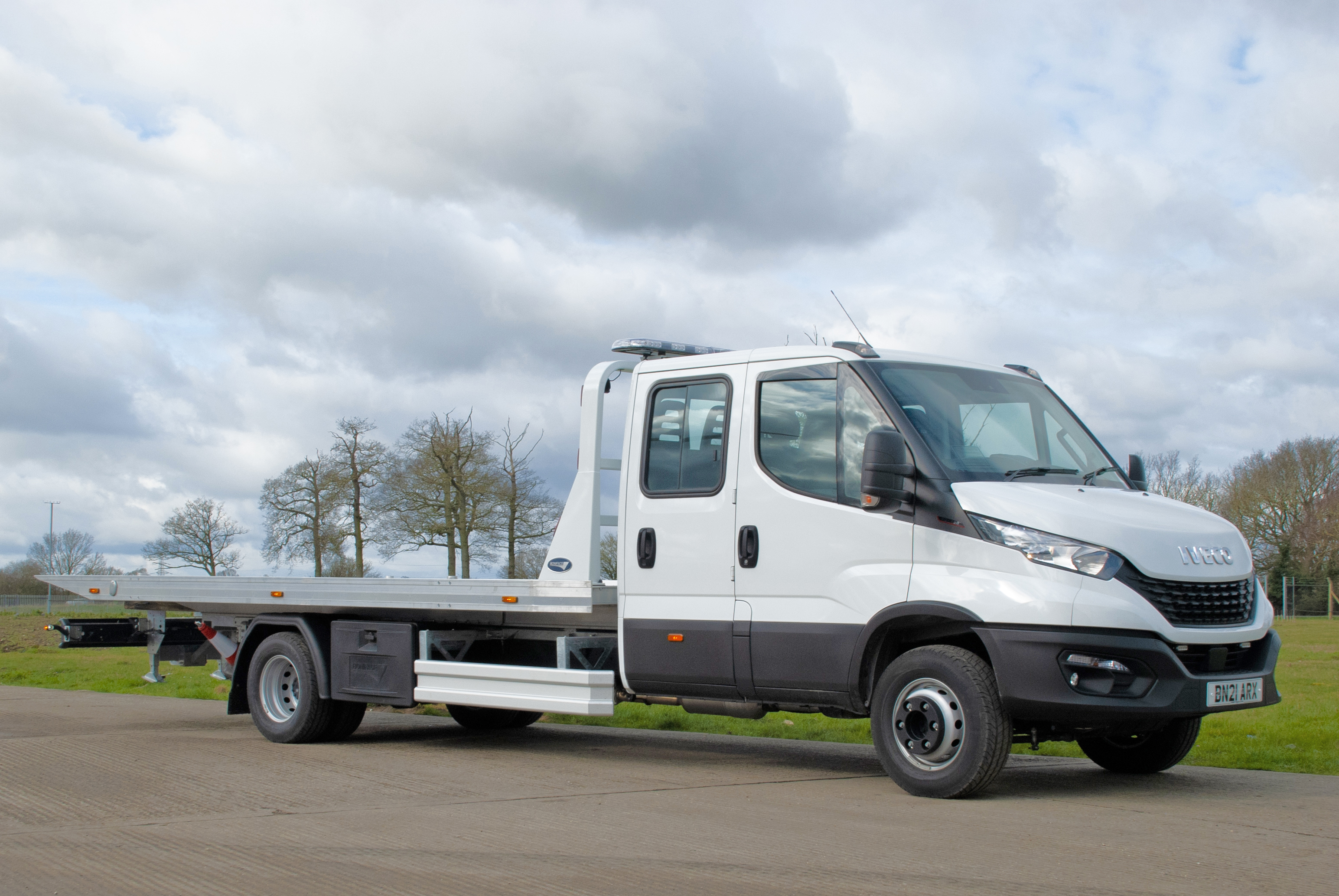

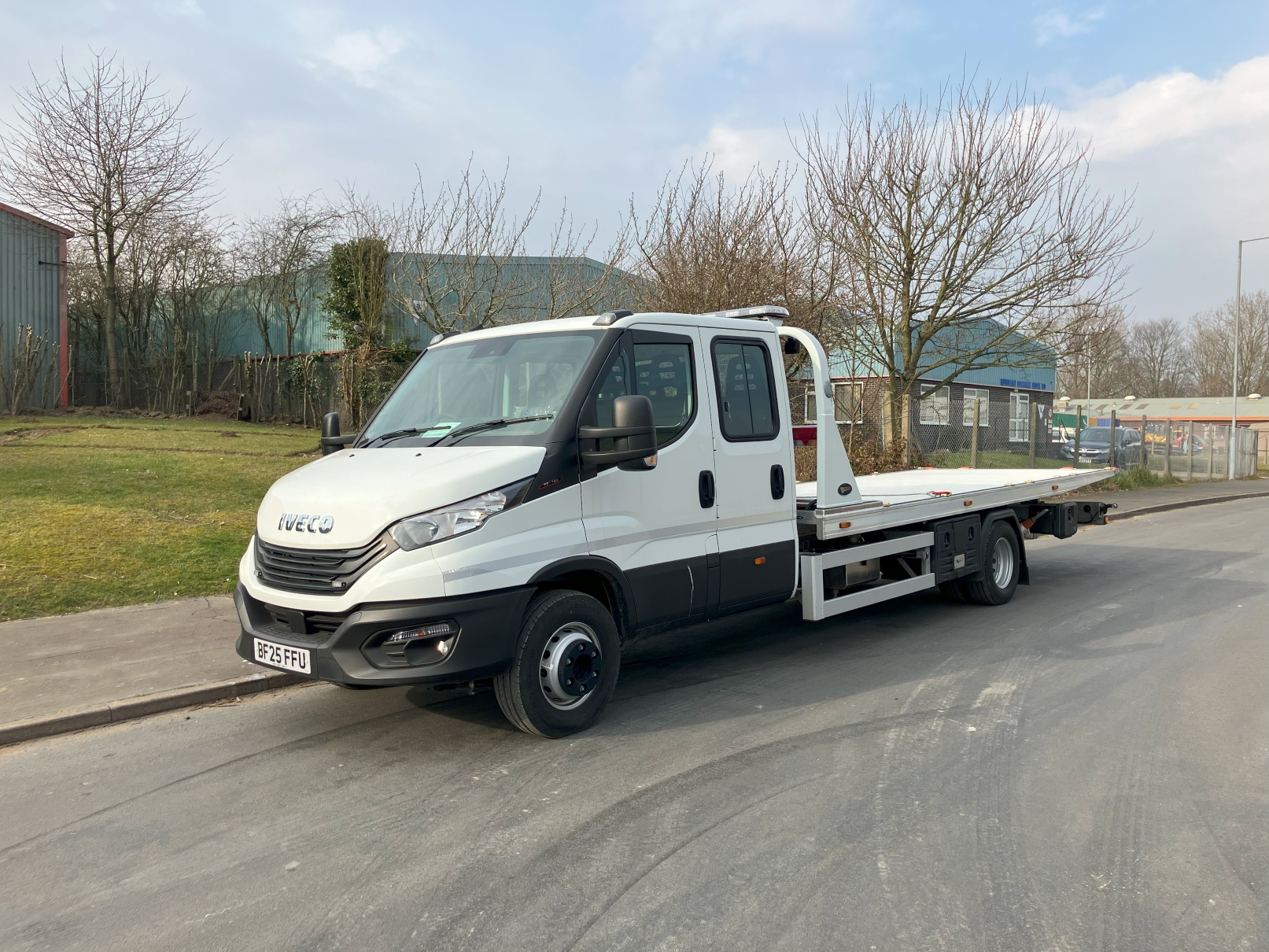

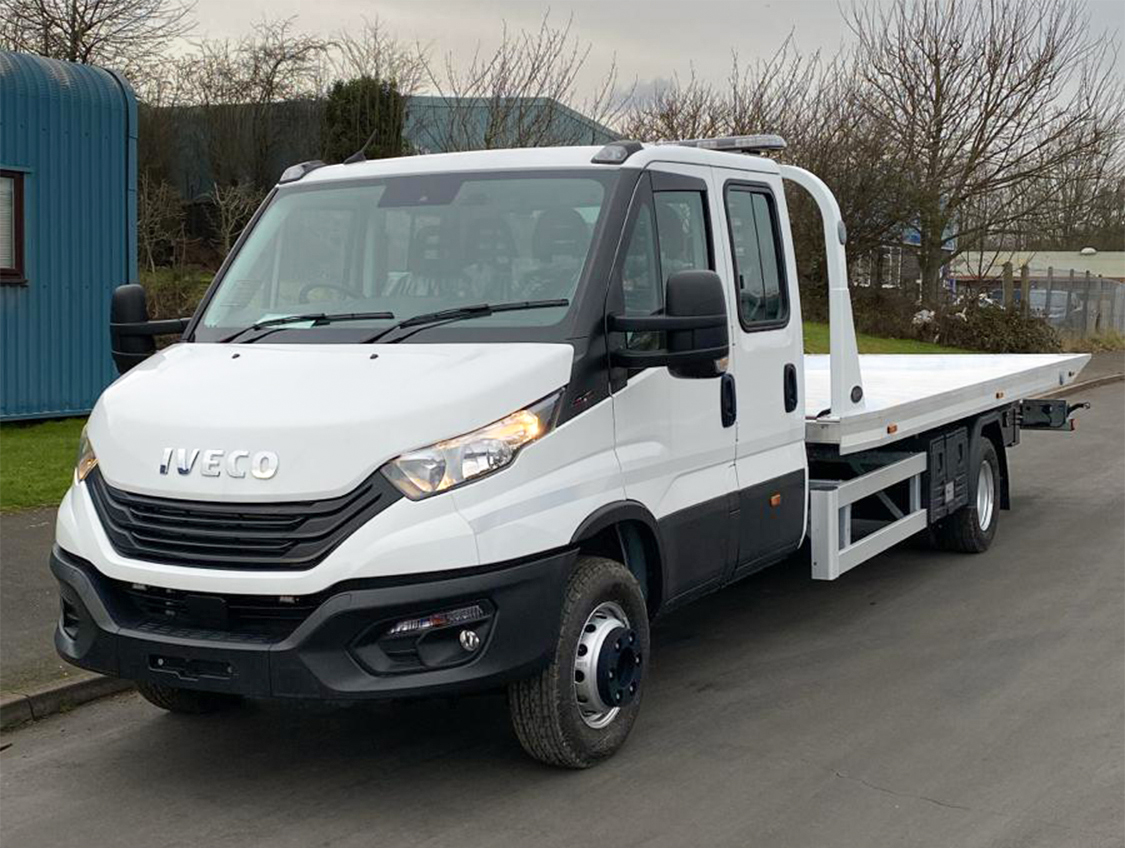

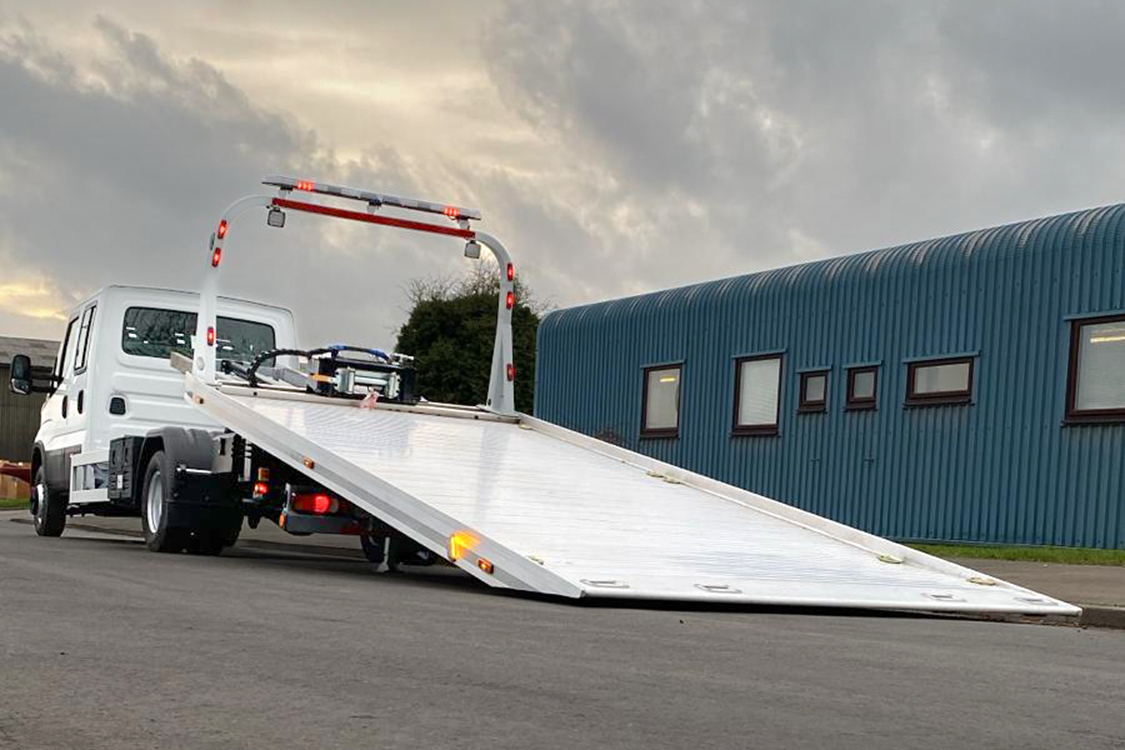

2022 Model Iveco Daily 70C18 Crew Cab – Chassis ETA June 2023

Chassis Specification:  5100mm Wheelbase, Factory Painted Cab in White, 6 Speed Manual Transmission, Business Pack, (Heated Electric Mirrors, Air Con, Cruise Control, Front Fog Lights) DAB Radio, Expansion Module, PDI, Fit Plates, Tacho Calibration, Factory Fitted PTO, 180A Alternator, Remote Central Locking with Alarm, 13 Pin Towing Socket, Body Builders Plug, Overhead Parcel Shelf, Drivers Suspended Seat.

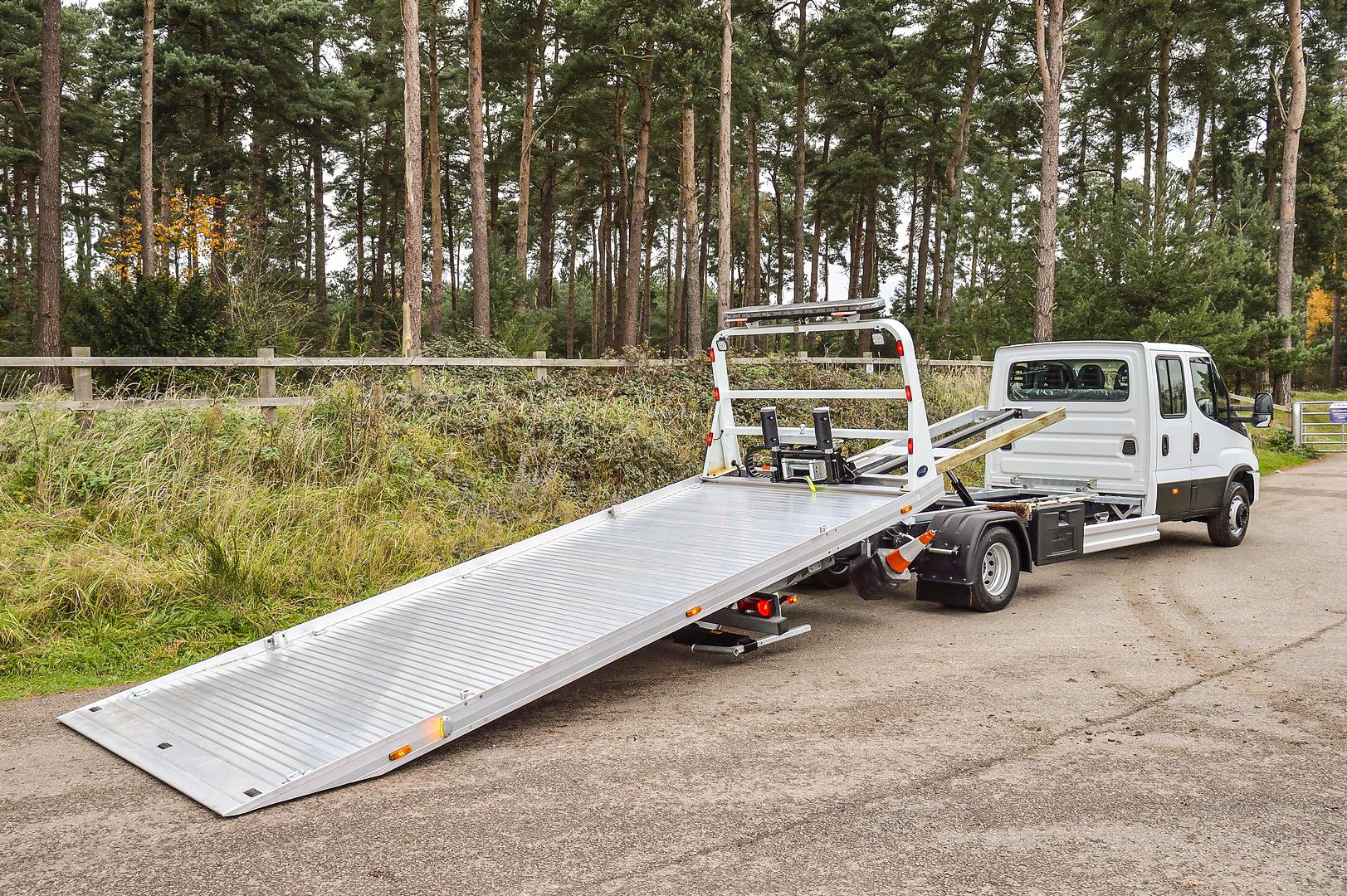

Equipment: The Above Chassis Is To Be Fitted With Our Champion Aluminium Slidebed, Hooped Flyer, Two Chassis Mounted Locker Boxes, Slimline LED Beacon With Duplicated Rear Vehicle Lights, LED Work Lights, Manually Sliding 8,000lb Hydraulic Winch, Radio Remote Control For Winch Operation With Cab Mounted Holder/Buzzer/Charger And A Rear Tow Bar With 12v 7 Pin Electrics.

With Sufficient Notice The Proposed Specification May Be Adapted To Meet Your Specific Needs Or Requirements. Call One Of Our Friendly Sales Team Today Who Will Be Happy To Help.

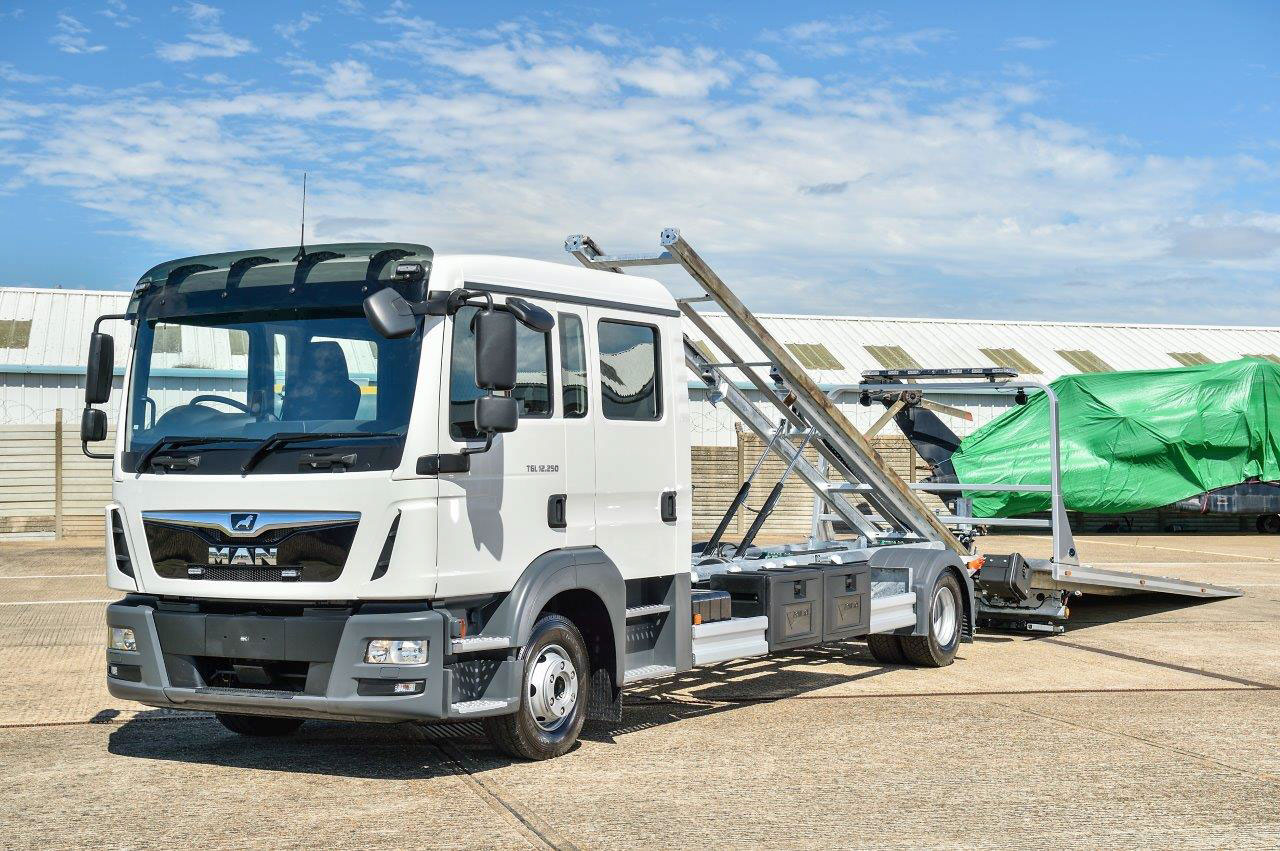

BS20781 New MAN 12.250 Crew Cab – Chassis ETA April 2024

12T MAN Crew Cab Chassis With Automatic Gearbox And Rear Air Suspension, To Be Fitted With An Aluminium 5T VLA, Galvanised Subframe & Tilt-Frame, Hooped Flyer, Slimline LED Beacon With Duplicated Rear Vehicle Lights, 4 x LED Work Lights, 2 x Chassis Mounted Plastic Locker Boxes, 2t Capacity 2nd Car Lift With Fold Over Wheel Grids, Trailer Board, Tow Attachment For 2nd Car Lift, 7 Pin Electrical Socket Reduced To 12v, Manually Sliding 8,000lb Hydraulic Winch, Low Pull Attachment For 2nd Car Lift, Radio Remote Control For Winch And Body Functions With Cab Mounted Holder-Buzzer & Charger, 4 x Side Winching Points c/w Removable Side Winch Capstan.

With Sufficient Notice The Proposed Specification May Be Adapted To Meet Your Specific Needs Or Requirements. Call One Of Our Friendly Sales Team Today Who Will Be Happy To Help.

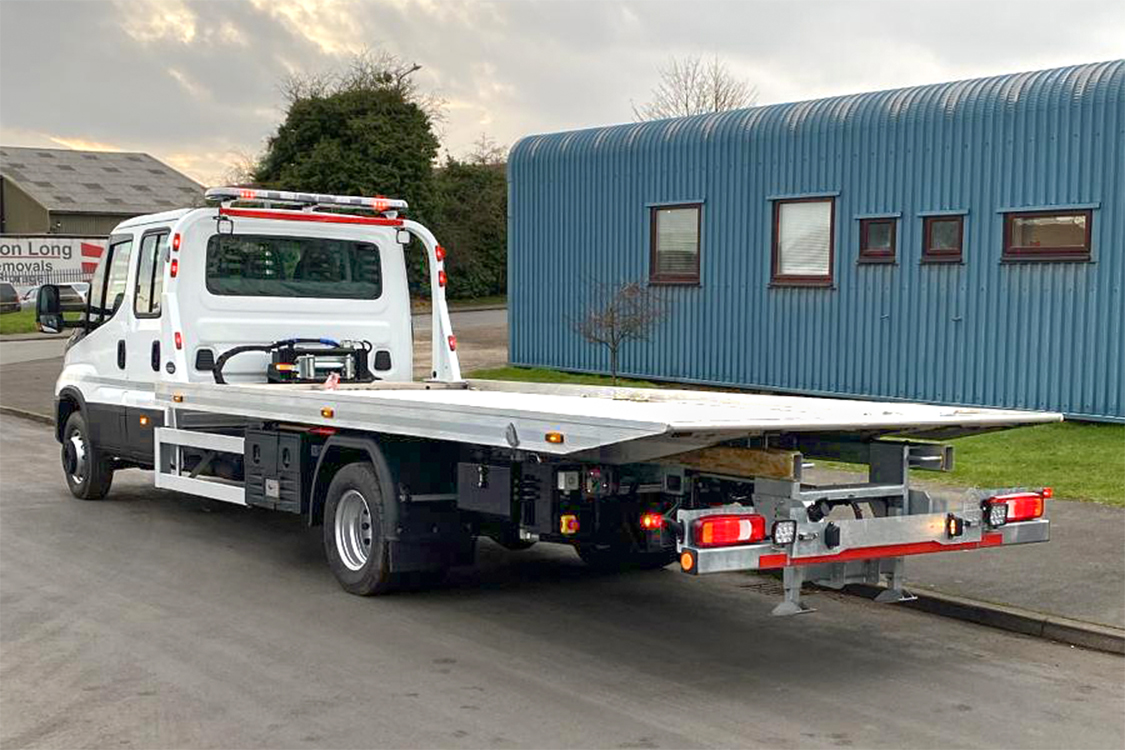

BS20682  Iveco Daily 70C18 Crew Cab – Chassis ETA June 2023

Chassis Includes a 6 Speed Manual Gearbox, Factory PTO, Business Premium Pack, Air Conditioning, Electric Heated Mirrors, Front Fog Lights, Remote Central Locking With Alarm, Cruise Control, DAB Radio, And Drivers Suspension Seat.

The Above Chassis Is To Be Fitted With Our Champion Aluminium Slidebed, Hooped Flyer, Two Chassis Mounted Locker Boxes, Slimline LED Beacon With Duplicated Rear Vehicle Lights, LED Work Lights, Manually Sliding 8,000lb Hydraulic Winch, Radio Remote Control For Winch Operation With Cab Mounted Holder/Buzzer/Charger And A Rear Tow Bar With 12v 7 Pin Electrics.

With Sufficient Notice The Proposed Specification May Be Adapted To Meet Your Specific Needs Or Requirements. Call One Of Our Friendly Sales Team Today Who Will Be Happy To Help.

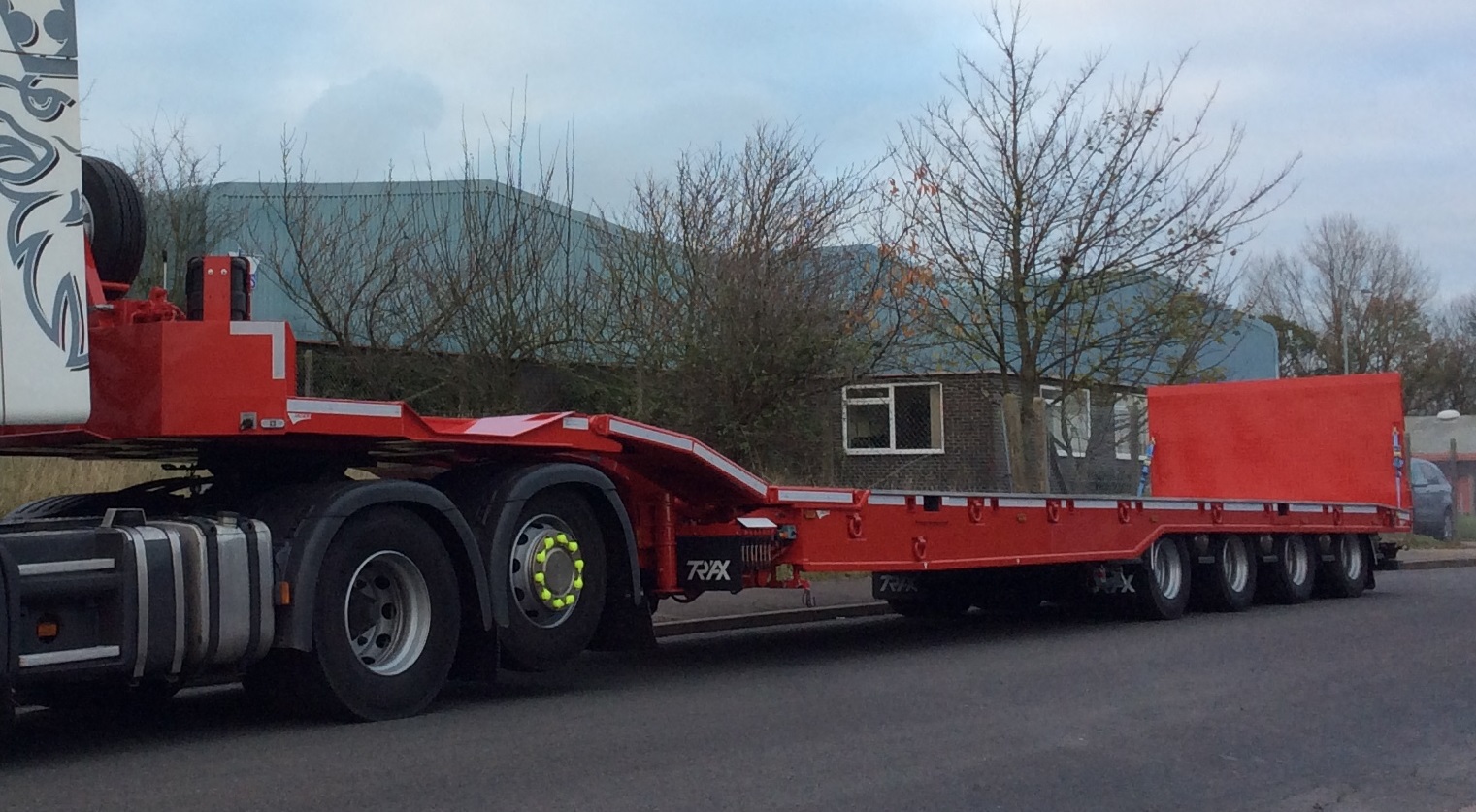

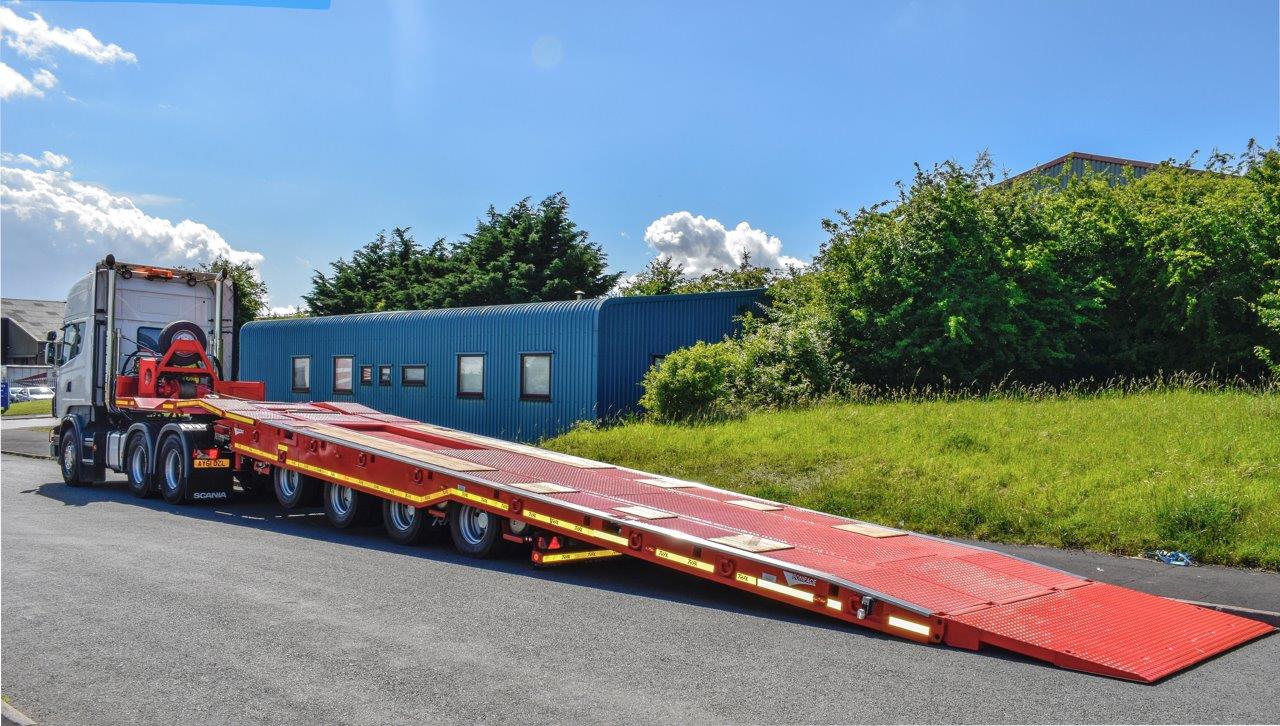

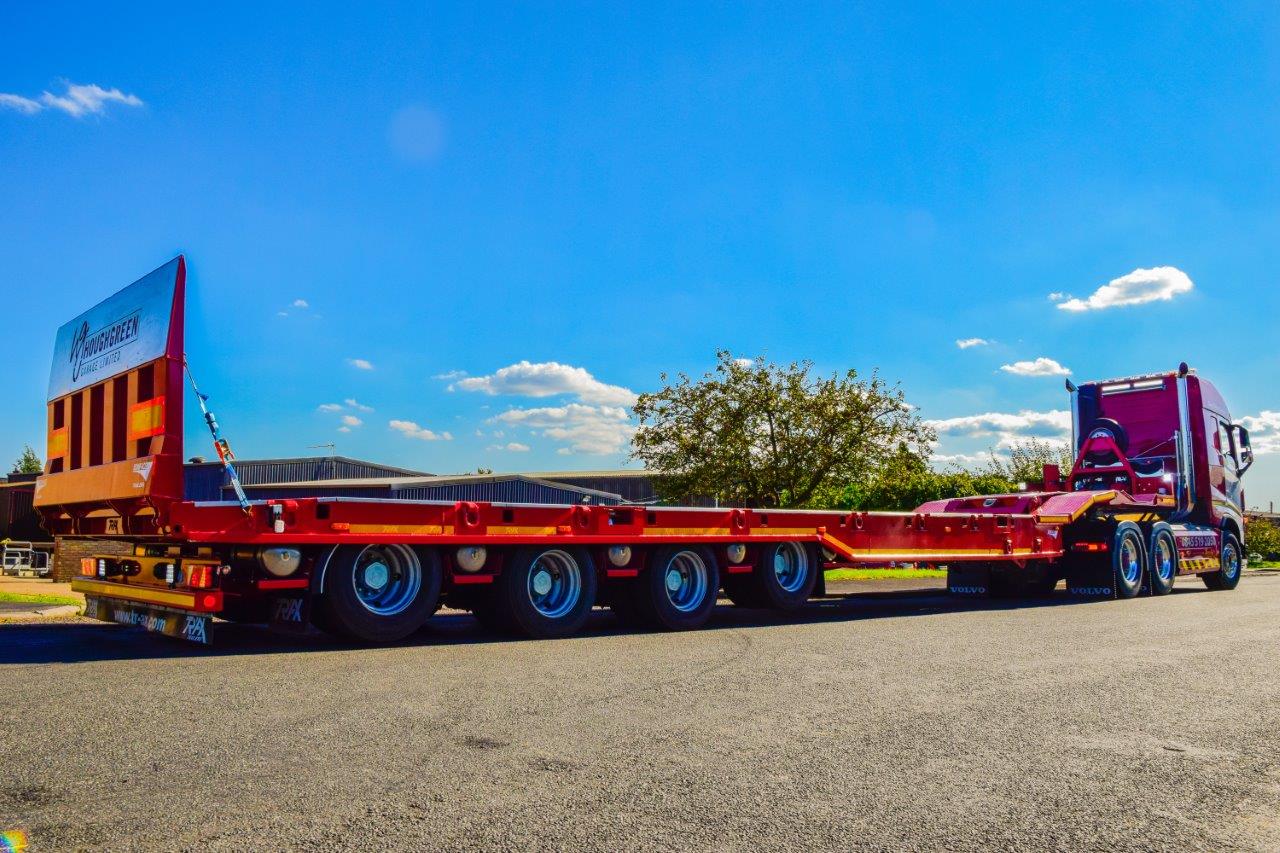

RECOVERY VEHICLE: SEMI-TRAILER WITH VARIABLE GEOMETRY VERSION
TYPE: S415.PVGV153.AT10J Maximum GVW 60 TONNES
AXLE ASSEMBLY
4 SAE-GIGANT 15”, 12 tonne axle capacity, with auto slack adjusters mounted on a sliding structure with hydraulic movement of 3900mm, including pneumatic locking - Air suspension with automatic and forced axle lift on the front and rear most axle - Wheels with hub alignment, 10 holes, twin formation, Goodyear 235 / 75R 17.5 RHT - Double braking circuit complying with EEC standards and EBS 4s3m ISO supply - Spring loaded parking brake
GENERAL EQUIPMENT
One position interchangeable king pin 2”. Coupling height: 1300mm - Hydraulic landing legs - Electrics and lighting in accordance with road regulations – 5 function rear lights - Wheel spanner
DIMENSIONS AND DESCRIPTION
Fabricated ST52 steel frame - Goose-neck: 4000 x 2530, reinforced, 18 tonne king pin, with 40mm thick hard wood floor - Interface behind the front panel for fixing centrally mounted Superwinch H30P c/w 19mm DIA x 50m long wire rope, radio remote control for winch, pneumatic rope tensioner and free spool and roller guide - Hydraulic socket on the front with flow divider - Straight Platform: 11000 x 2500, with 40mm thick hard wood - Hydraulically powered pantograph mechanism drive allowing the optimum inclination to load a vehicle from the rear - Rear hydraulic ramp for accessing to the platform - Eight reinforced sockets for telescopic expanders each side - Nine pairs of lashing rings - Planks pit between spars with depth 100mm - Chain slots on deck
Painting:. Top and sides painted single solid non metallic colour (post office red). Underside painted single solid

Special Order Only – Call For Details
