Century 1150

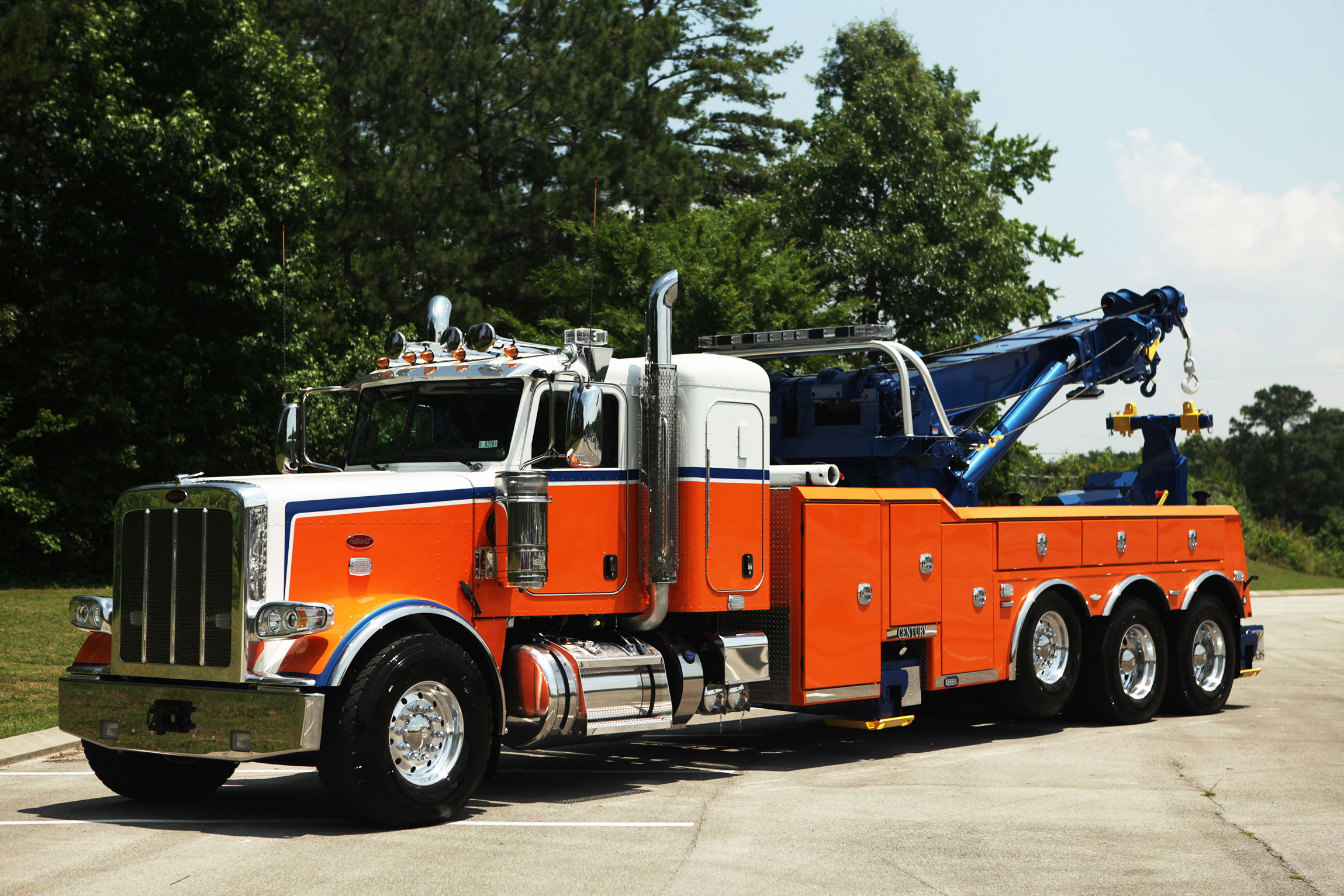

With the call for quick clearance on congested roadways and to handle a variety of difficult recovery and lifting jobs, Century is the number one choice worldwide. As the only manufacture of recovery equipment that designs specifically for towers needs and safety, we are proud to offer the 1150, a 50 ton rotator ideal for heavy recovery with a weight saving design for your daily towing.

More +



Like the Century 1075, the 1150 features 360° of continuous boom rotation, a 3-stage recovery boom, optional deck and turret mounted winches and field tested and proven SDU-4 underlift. The 1150 technology is also available in the Century 1150R that features a unique patented roller system that allows the boom to travel up to 60”. The low maintenance roller system has the ability to start and stop under heavy loads, even while rotating. The 1150R also features the new patent pending Raptor Wireless Proportional Control System which includes an information screen with load sensing functions.

Features

Top of Page

Body

  • Aluminium Modular Body w/ Rubber Mounting Isolators
  • Mud Flaps
  • 1st Stage “D” Rings on the Tailboard
  • LED Toolbox Lighting
  • Rubber Fenderettes
  • 360 Degree Continuous Rotation
  • Front Outriggers
  • 3-Stage Rear Hydraulic Outriggers
  • 4-Stage Rear Outriggers
  • Hydraulic Pump
  • Dual 2-Speed Planetary Winches
  • Pressure Gauges
  • “D” Rings Mounted on Each Stage
  • Large Outrigger Pads
  • Rotator Pylon Flyer
  • “D” Ring Package
  • Quick Connect Air
  • Safety Chain Roller
  • Hydraulic Reservoir With Oil Level Sight Gauge, Tank Drain & Access Panel

Boom

  • Boom Angle Indicator
  • Proportioning Power Boom Extension with Counter Balance Valve
  • Air Activated House Lock, Secures Boom In Rear Or Forward Position For Transport
  • 360° Sheave Heads
  • 360° Continuous Boom Rotation
  • Air Cable Tensioners
  • Winch Air Free Spool

RXP

  • Dual 2-Speed Planetary Winches
  • Directional Sheave Head (1 Per Leg)
  • Winch Air Free Spool
  • Recovery “D” Ring (1 Per Leg)
  • Air Tensioner (1 Per Winch)

Underlift

  • Boniface H-Maxireach Lowline
  • Boniface I Lowline
  • Coach Low Rider Underlift
  • Low Profile 70° Pivoting Heavy Duty Fabricated Lift Bar
  • 3-Stage Design
  • 2 Piece Pivot Pin
  • Upper/Lower Thrust Washer
  • Power Elevation
  • Power Extension
  • Power Tilt
  • Hydraulic Fold
  • 9 Sets Of Cast Steel Forks
  • Pivoting Spring Lift Adapters
  • Low Profile Fork Holders
  • Fork Riser Brackets

Optional

  • Front Mounted 2-Stage H-Beam Outriggers 212” Stance (1150S)
  • Front Mounted 3-Stage H-Beam Outriggers (Standard On 1150S & 1150R)
  • Rear 4-Stage Outriggers 220” Stance
  • Additional Lift Forks
  • Extension Stowage Compartment
  • Endless Loop Sling Package
  • Snatch Blocks
  • Snatch Block Stowage Rack
  • Halogen Work & Hook-Up Lighting
  • Wide Load Light Bar
  • Rear Camera & Monitor
  • Cab Control System
  • Convenience Group (Rails & Steps)
  • Offset Fork Holder Extension
  • 3-Drawer Toolbox
  • 4-Drawer Toolbox
  • Folding Wash-down Sink
  • Heavy Duty Tyre Lift
  • Pintle Hook Attachment
  • Trailer Ball Adapter (Requires Pintle Hook Attachment)
  • 5th Wheel Plate (Requires Pintle Hook Attachment)
  • Low Pull “D” Ring Kit
  • Chain Package
  • Recovery Straps
  • Light Bar
  • Xenon Boom Lights
  • Strobe Kits
  • Rear Air & Electrical Hook-Ups
  • Air Shift PTO
  • Manual Override Control for PTO
  • Aluminium Dress-Up Kits
  • Stainless Steel Dress Up Kit
  • Central locking for Lockers
  • Chain Hook Slide Adapter
  • Tailboard Cable Tiebacks
  • Additional Lighting
  • Stainless Steel Fenderettes
  • Front Outrigger Side Pull Attachment
  • Chain Rack Carousel
  • Foundry Hooks
  • Shackles
  • Spreader Bar
  • Rotator “D” Ring Package
  • Winch Bucket Mounted Aluminium Tubular Pylon Flyer
  • 24”, 30”, 36”, 48” Saddle Tunnel Box
  • Water Tank Kit

Optional - 1150S & 1150RXP

  • Raptor Package
  • MMGO Package (Load Sensing System)
  • Backlit Controls
  • Driver Side Manual Controls
  • Radio Proportional Controls With Single Mounted Controls
  • Tailboard Underlift Controls

Specifications

Boom

Boom Structural Retracted Rating At 30° 45,359 kg (100,000lbs)
Boom Structural Extended Rating At 30° 11,339 kg (25,000lbs)
Maximum Boom Extension 6,299mm
Maximum Hook Height 12,573mm
Boom Rotation Angle 360°
Boom Maximum Angle 60°

Winch Rating & Cable

Winch Capacity 22,679 kg (50,000lbs)
Winch Type Planetary (2-speed)
Cable Specifications 19mm x 76m IWRC
Winch Free Spool Air Operated
Cable Tensioners Air

Optional Drag & Auxillary Ratings

Component 50K Dual 35K Dual 22k Turret
Winch Capacity 22,679 kg Dual 15,875 kg Turret-Mounted Dual 9,979 kg
Winch Type Planetary 2-Speed Planetary 2-Speed Planetary Single Speed
Cable, 6 x 37 IWRC 19mm x 60m 16mm x 60m 16mm x 60m
Air Cable Tensioner Air Air Air

Underlift

  SDU-4 H-Maxireach Lowline I-Lowline
Underlift Rating Extended 7711kg  (17000lb) by 3556mm 9000kg by 4295mm 9000kg by 3747mm
Underlift Rating Retracted 24947kg (55000lb) by 1371mm 33000kg by 1995mm 33000kg by 1813mm
Underlift Extendable By 2185mm (hydraulic) 2300mm (hydraulic) 1934mm (hydraulic)

Important: All ratings are based on structural factors only, not vehicle capacities or capabilities. Specifications shown are approximations and may vary depending on chassis selected. Boniface Engineering, Ltd. reserves the right to change or modify product and/or specifications without notice or obligation. Some equipment shown is optional.
