Boniface Champion 5T

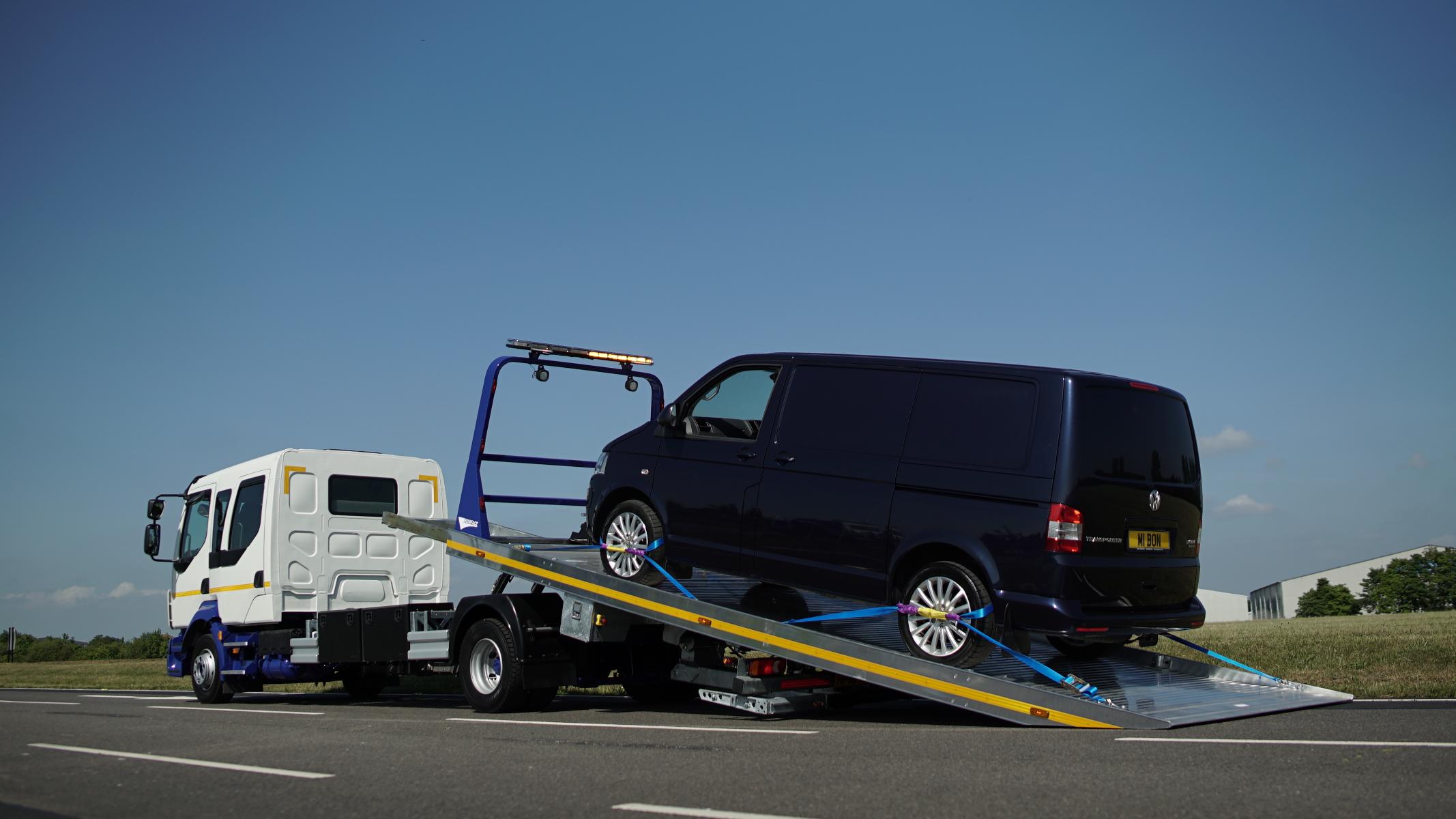

The Boniface Champion 5T has been designed and developed for the European marketplace as a reliable slidebed that stands up to the most demanding conditions.

More +



Utilizing either the rear mounted manual control levers or with the optional radio remote control, the operator can tilt and slide the deck back to provide easy loading and unloading of vehicles. For those difficult to load low clearance cars, the shovel tail design provides for an even lower approach angle. The durable lightweight aluminium deck provides for increased payload and comes standard with a sliding hydraulic winch to allow you to maintain a straight pull on the disabled vehicles tow eye. With the optional second car lift you can even increase your profits by transporting several cars at once. The galvanised subframe and tilt frame helps promote long life of the equipment.

Like the complete line of towing and recovery equipment from Boniface, The Champion 5T is engineered and built with the strength to get the job done and is backed by their reputation of providing quality products and service for over three decades. To learn more visit www.Boniface-Eng.com or call +44 (0) 1842 754232

Features

Top of Page

Standard

  • Aluminium Deck
  • Aluminium Safety Side Raves
  • Shovel Tail Design for Lower Approach Angle
  • Bed Rollers Mounted in End of Deck
  • 8 Lashing Rings on Deck (4 Per Side)
  • Galvanised Subframe and Tilt Frame
  • Hydraulic Winch with Wire Rope
  • Hydraulically Sliding Winch Mechanism
  • Manual Winch Free Spool
  • 4 Way Winch Roller Guide
  • Plug and Play Electrical System
  • LED Marker Lights Fitted into Side Raves (3 Per Side)
  • 4 Ratchet Straps with Soft Eyes
  • Manual Control Levers
  • Towball Attachment
  • Pump

Optional

  • Additional Lashing Rings
  • Wheel Chocks (pair)
  • 2T Second Car Lift w/ Euro Wheel Grids
  • 2T Second Car Lift w/ Century Wheel Lift
  • Low Crash Bar
  • Full Height Beacon Flyer
  • Plastic Locker
  • Black Powder Coated Steel Locker
  • Polished Stainless Steel Locker
  • Fixed Granule Bin
  • Plastic Mudguards Over Rear Wheels
  • Aluminium Side Under-Run Protection
  • 7 Pin Electrical Socket At Chassis Voltage
  • Side Winching Capstan-4 Position with Post
  • Wheel Skate Bed Ramps
  • Wheel Skates w/ Stowage (pair)
  • GoJaks 6200 w/ Stowage (pair)
  • Greedy Ramps w/ Stowage (pair)
  • Ferrari Ramps w/ Stowage (pair)
  • Wrecker Kit Stowed (Broom, Shovel, 7lb Sledge Hammer, 24” & 48” Bar,  Hard Hat & 6 Safety Cones)
  • 3T Trolley Jack Stowed in Locker
  • Dynacycle Motorcycle Frame w/ Stowage
  • Jump Leads
  • Jump Socket
  • LED Strobes Fitted into Front Grill (2x Amber)
  • LED Strobes at Rear (2x Amber or Red)
  • LED Beacon
  • LED Work Lights
  • LED Locker Lights
  • LED Marker Lights on Flyer (6x)
  • PTO
  • Cab Control Unit
  • Winch Roller Guide
  • 2, 4, 6, 8 or 12 Function Radio Remote Control

Specifications

Bed

Bed Length: 7M
Bed Width: 2.3M
Bed Rating: 5 Tonne UDL
Bed Construction: Aluminium & Steel Options Available

Winch Capacity

Winch Capacity: 3.6 Tonne (EN14492 Compliant)
Cable Diameter & Length: 10mm x 24M
Cable Rating: 7.2 Tonne MBL

Important: All ratings are based on structural factors only, not vehicle capacities or capabilities. Specifications shown are approximations and may vary depending on chassis selected. Boniface Engineering, Ltd. reserves the right to change or modify product and/or specifications without notice or obligation. Some equipment shown is optional.
