Boniface Recoverer Trident

For the ultimate heavy duty unit to tackle quick clearance at major accidents along with the ability to handle your most difficult tows, The Boniface Recoverer sets the industry standards. The Recoverer provides the perfect combination by blending Century’s largest integrated heavy duty recovery unit, the Century 9055 with the UK’s number one choice in heavy under-lifts, The Boniface Maxireach Lowline H or Lowline I.

More +

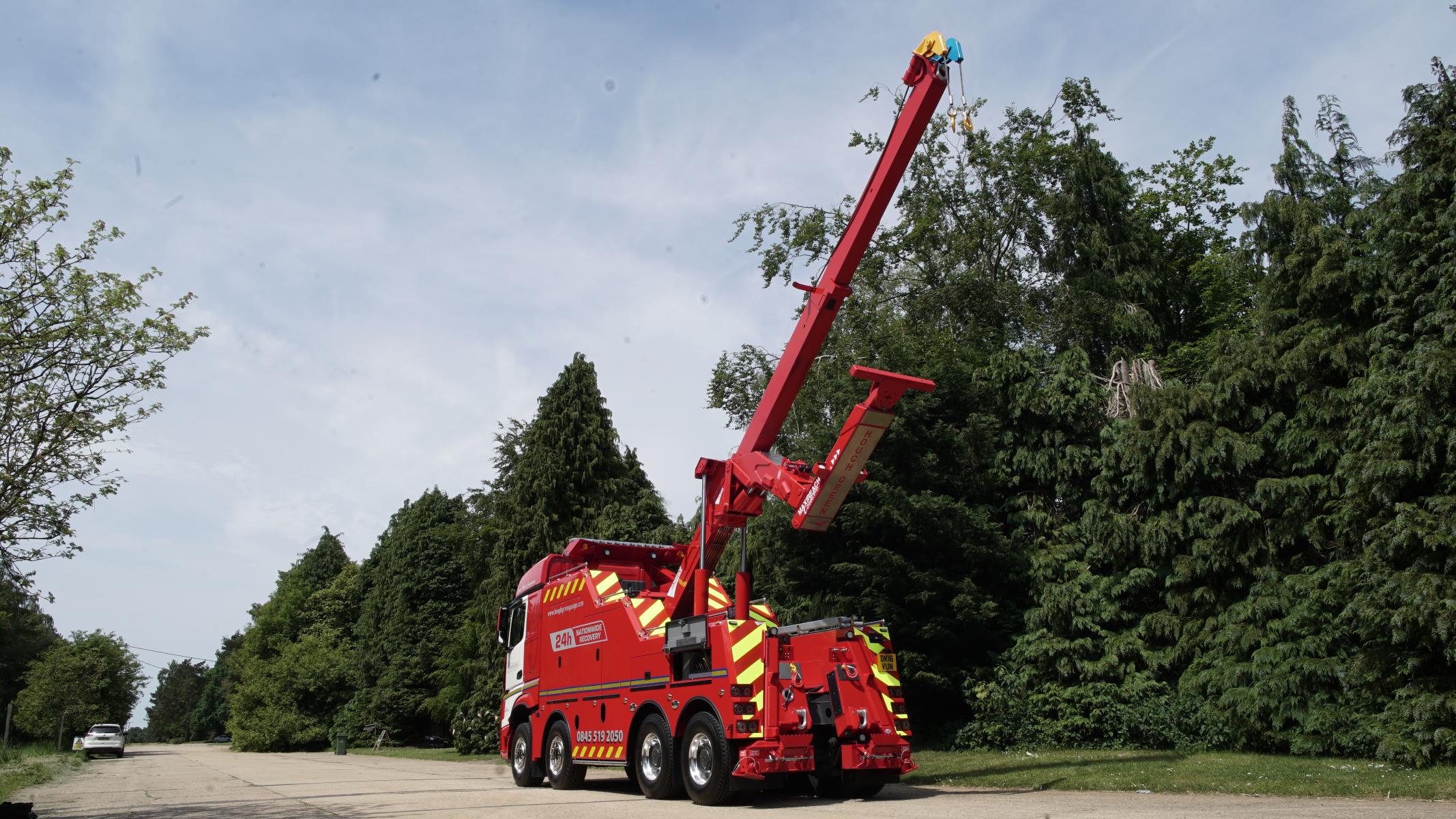

The Recoverer’s 3 stage top recovery boom has an impressive retracted structural rating of 45 tonne’s with the power to simultaneously extend and elevate under load with a capacity of 8 tonne’s at its maximum extended reach of 5.5m. The unit can be operated with the optional 16 function radio remote handset or by the manual control levers located in the rear lockers. To provide stability and anchorage to your unit on a variety of road surfaces, the Recoverer is equipped with diagonal rear outboard legs with a flip spade or foot. Optional hydraulic extension feet are also available on the rear legs for increased side stability.



For those tough recoveries on narrow roads or to maintain minimal lane blockage, Recoverer can be equipped with Sidewinder front hydraulic legs that rotate out up to 90 degrees and provide increased stability with a wide foot print and tremendous side pulling capabilities. For maximum power and rigging possibilities, Sidewinder is also available with additional heavy duty winches.



The Maxireach Lowline H or Lowline I under-lift has the capability to tow today’s modern trucks and coaches with molded components and aerodynamics that require a low profile under-lift that copes with long overhangs and the capacity to lift heavy weights.



The Recoverer’s Maxireach Lowline H or Lowline I under-lifts are both fabricated from specially quenched and tempered high tensile steel to provide strength without adding extra height or weight. Skilled craftsman construct the under-lift to exacting tolerances using methods to reduce deflection and ensure years of smooth operation and service under extreme conditions. Each under-lift goes through rigorous inspection and testing of its lifting capabilities and ability to extend and retract under heavy load.



The Recover is lastly outfitted with the Boniface Super Deluxe Stainless Steel Body that is designed and crafted for your individual chassis and requirements. Features include large wardrobe style doors on the forward lockers and purpose built brackets to keep your accessories organized and accessible. Flat floor lockers with no sills allow for easy removal and replacement of your equipment along with plastic matting in each locker for additional protection. Coach style double catch locks and weatherproof seals protect the lockers contents from the harsh elements.

Features

Top of Page

Standard

  • Maxireach Lowline H or Lowline I Under-Lift
  • Under-Lift Power Tilt & Extension
  • Dual Planetary Two Speed Winches
  • Winch Air Free Spool
  • Cable Tensioners
  • Recovery Boom Power Extension & Elevation
  • 360° Sheave Heads
  • Rear Outboard Legs with Flip Spade/Feet
  • Tailboard D Rings
  • Super Deluxe Stainless Steel Tri-Step Body
  • Large Wardrobe Style Doors on Front Lockers
  • Coach Style Double Catch Door Locks
  • Internal Hinges
  • Gas Strut Door Shuts
  • Weather Proof Door Seals Around All Doors
  • Vertically Opening Doors Over Rear Wheels
  • Flat Floor Lockers with No Door Sills
  • Stealth Flyer with Environment Lights
  • Control Station at Rear
  • LED Work Lights (4x)
  • LED Locker Lights
  • Dri-Dek Locker Matting

Optional

  • Boniface Lift Bar with Low, High, Extra High Pedestals and 3 Sets of Standard Forks
  • Chain Clutches, Spring Hanger Adaptors and King Pin Adaptor
  • Miller 5” Lift Bar with Round Axle Forks, Chain Hook End Caps & Pivoting Spring Lift Adaptors
  • Low Profile Fork Holders & 7 Sets of Cast Steel Forks
  • Winch Upgrade - 20T (EN14492 Compliant)
  • Ballast Bumper
  • Ballast
  • Super Heavy Duty Wheel Grids w/ Stowage
  • Extra Heavy Duty Wheel Grids w/ Stowage
  • Euro Wheel Grids w/ Stowage
  • Century Wheel Grids w/ Stowage
  • Heavy Duty Tow Pole w/ Stowage
  • Additional Lifting Forks and Pedestals
  • Rotator Style Legs - Side Extending Feet
  • D Loops On Rear Feet
  • 16 Function Radio Remote
  • Sidewinder
  • Sidewinder Winch (Max. 2)
  • Sidewinder Fairlead
  • Sidewinder Leg Covers
  • Range of Flyers
  • 3-Drawer Toolbox
  • 4-Drawer Toolbox
  • Air Reel
  • Electric Reel
  • Trailer Board
  • Rear View Camera System (Single or Double)
  • Central Locking for Locker Doors
  • Half Shaft Stowage in Locker or Tailboard
  • Hand Wash Basin with Soap and Towel Dispenser
  • Jump Leads
  • Jump Sockets (12 and 24 Volt)
  • Stainless Steel Hand Rails
  • Stainless Steel Kick Plates
  • Snatch Blocks
  • Safety Chains

Specifications

Under-Lift

Under-Lift Capacity Extended: 9 Tonne
Under-Lift Capacity Retracted: 25 Tonne
Maxireach Lowline H - Extended: 4.38M
Maxireach Lowline H - Retracted: 2.08M
Lowline I - Extended: 3.83M
Lowline I - Retracted: 1.90M
Subterranean Travel: 6mm
Negative Tilt: -10°
Positive Tilt: +7°

Recovery Boom

Recovery Boom Extended: 45.4 Tonne @ 30°
Recovery Boom Retracted: 8.17 Tonne @ 30°
Maximum Boom Angle: 39°
Maximum Boom Height: 7.59M
Hydraulic Boom Extension: 5.48M

Winch Capacity

Winch Capacity: 14 Tonne @ 1st Layer (EN14492 Compliant)
Cable Diameter & Length: 20mm x 60M
Cable Rating: 28.4 Tonne MBL

Important: All ratings are based on structural factors only, not vehicle capacities or capabilities. Specifications shown are approximations and may vary depending on chassis selected. Boniface Engineering, Ltd. reserves the right to change or modify product and/or specifications without notice or obligation. Some equipment shown is optional.
