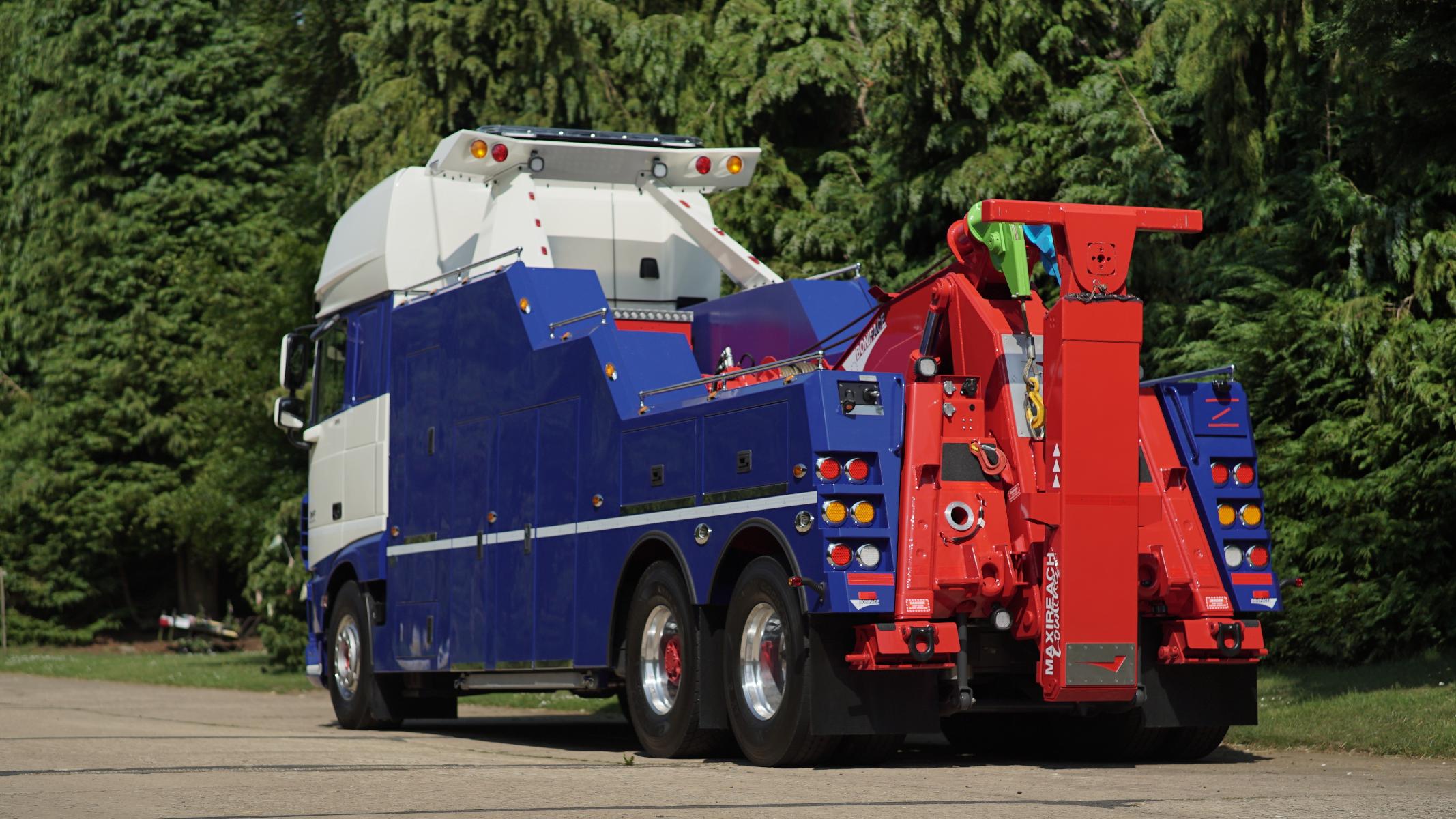

Boniface Interstater MK6

To tow many of today’s modern trucks and coaches with moulded components and aerodynamics, operators need a low profile under-lift that copes with long overhangs and the capacity to lift heavy weights. The Boniface Interstater MK6 has met the challenge with a proven track record reaching back over 30 years.

More +



The Interstater’s Maxireach H or I under-lifts are both fabricated from specially quenched and tempered high tensile steel to provide strength without adding extra height or weight. Skilled craftsman assemble the components to exacting tolerances to ensure years of smooth operation and service under extreme conditions. Each under-lift goes through rigorous inspection and testing including lifting, extending and retracting under heavy loads.



With over 1,000 units in operation the Boniface Interstater is not only an industry favourite for heavy duty towing but has a built reputation as an extremely versatile unit that can also handle tough recoveries. The Interstater is equipped with rear outboard legs with pivoting feet that provides a flat pad or a spade depending on the surface conditions and is available with your choice of winches. For those difficult recoveries on narrow roads or to maintain minimal lane closures, your Interstater can be outfitted with The Sidewinder pivoting front legs and additional winches.

Features

Top of Page

Standard

  • Maxireach Lowline H or Lowline I Under-Lift
  • Tailboard D Rings
  • D Loops On Rear Feet
  • Super Deluxe Stainless Steel Tri-Step Body
  • Large Wardrobe Style Doors on Front Lockers
  • Single Door Access for “Most Used Equipment”
  • Coach Style Double Catch Door Locks
  • Internal Hinges
  • Gas Strut Door Shuts
  • Weather Proof Door Seals Around All Doors
  • Vertically Opening Doors Over Rear Wheels
  • Flat Floor Lockers with No Door Sills
  • Stealth Flyer with Environment Lights
  • Control Station at Rear
  • Ballast
  • LED Work Lights (4x)
  • LED Locker Lights
  • Dri-Dek Locker Matting

Optional

  • Boniface Lift Bar with Low, High, Extra High Pedestals and 3 Sets of Standard Forks
  • Chain Clutches, Spring Hanger Adaptors and King Pin Adaptor
  • Super Heavy Duty Wheel Grids w/ Stowage
  • Euro Wheel Grids w/ Stowage
  • Century Wheel Grids w/ Stowage
  • Heavy Duty Tow Pole w/ Stowage
  • Customised Stowage Plan
  • Additional Lifting Forks and Pedestals
  • Planetary Winch w/ Air Free Spool (Max. 2)
  • Rear Inboard Legs
  • Rear Outboard Legs
  • 8, 10 or 12 Function Radio Remote
  • Sidewinder
  • Sidewinder Winch (Max. 2)
  • Sidewinder Fairlead
  • Sidewinder Leg Covers
  • 3-Drawer Toolbox
  • 4-Drawer Toolbox
  • Air Reel
  • Electric Reel
  • Trailer Board
  • Rear View Camera System (Single or Double)
  • Central Locking for Locker Doors
  • Half Shaft Stowage in Locker or Tailboard
  • Hand Wash Basin with Soap and Towel Dispenser
  • Jump Leads
  • Jump Sockets (12 and 24 Volt)
  • Stainless Steel Hand Rails
  • Stainless Steel Kick Plates
  • Snatch Blocks
  • Safety Chains
  • Aluminium Wheel Stands
  • Granule Bin
  • Fire Extinguisher
  • Additional LED Beacon
  • Additional Work Lights
  • Additional LED Side Markers
  • Under-Lift Boom Work Lights
  • LED Strobe Lights (Red or Amber)
  • Docking Lights
  • Range of Flyers
  • Wrecker Kit

Specifications

Under-Lift

Under-Lift Capacity Retracted: 33 Tonne
Under-Lift Capacity Extended: 9 Tonne
Maxireach Lowline H - Extended: 4.34M
Maxireach Lowline H - Retracted: 2.04M
Lowline I - Extended: 3.79M
Lowline I - Retracted: 1.86M
Subterranean Travel: 110mm
Negative Tilt: -10°
Positive Tilt: +18°

Important: All ratings are based on structural factors only, not vehicle capacities or capabilities. Specifications shown are approximations and may vary depending on chassis selected. Boniface Engineering, Ltd. reserves the right to change or modify product and/or specifications without notice or obligation. Some equipment shown is optional.
