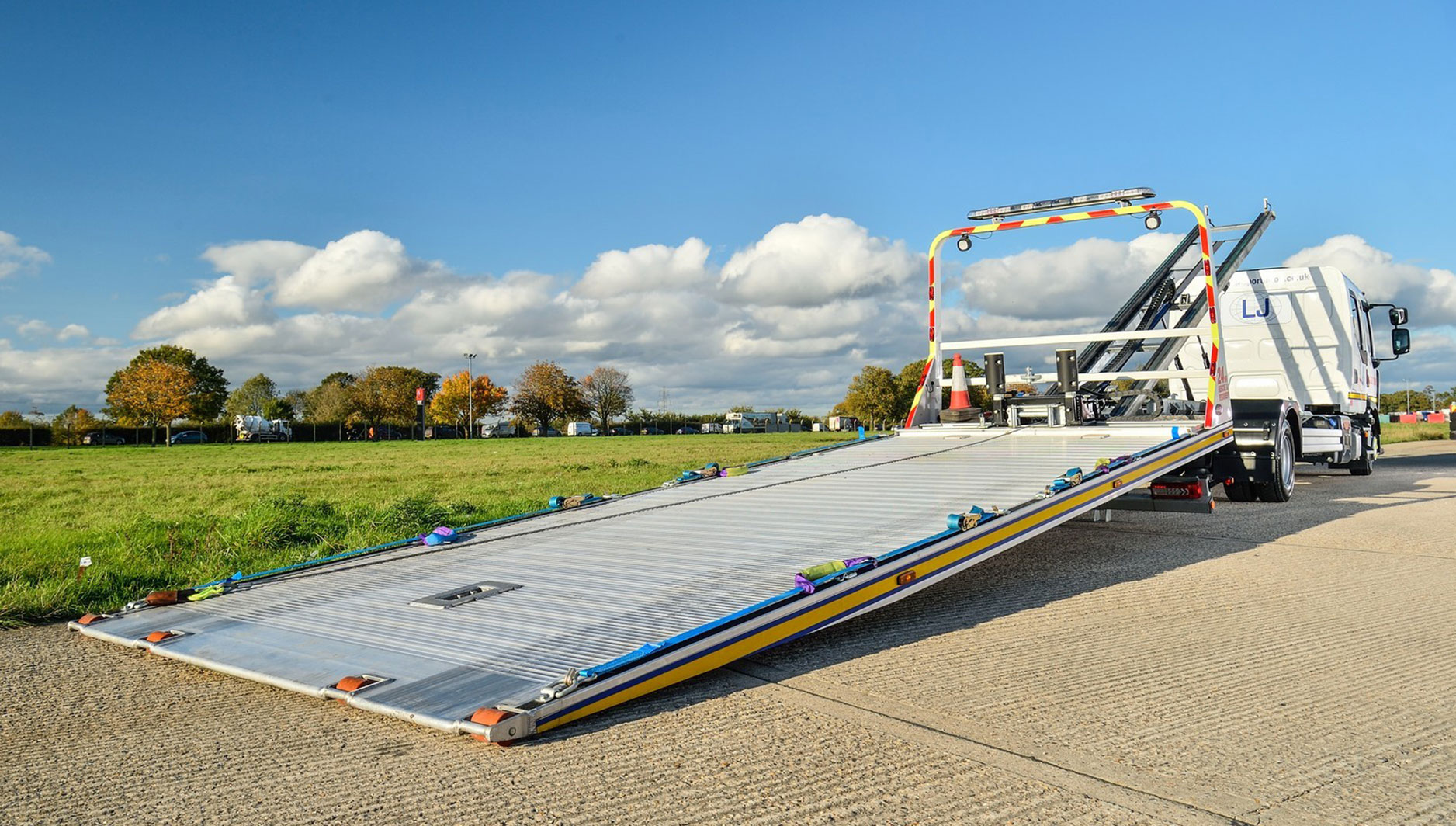

Boniface VLA 5T

With challenging economic conditions, recovery and transport companies are looking for a reliable slidebed that can be utilized for a wide range of vehicles. The Boniface VLA 5T (Very Low Angle) has become the number one choice by many operators to meet that need.

More +



The VLA 5T’s heavy duty double rack and pinion drives moves the bed backwards and forwards achieving a load angle between 4 and 6 degrees (depending on the chassis). The VLA 5T can easily handle box trucks or larger vans with long overhangs that drag when you load them on a conventional slidebed. You can also throw away those planks or ramps that look unprofessional and can easily move or slide causing damage when loading low clearance prestige and sports cars thanks to the VLA 5T’s low load angle. With the optional second car lift you can even increase your profits by transporting several vehicles at once.

 The full floating tilt allows for an easy one button operation to move the bed fully on or off and complies with the latest safety directives. This prevents any movement of the equipment when the operator releases the controls by integrating a brake in the drive motor and a check valve on the cylinders.

The powered tilt rams enable loading on hills or even when the weight is at the rear of the bed. The durable lightweight aluminium deck provides for increased payload and comes standard with a sliding hydraulic winch to allow you to maintain a straight pull on the disabled vehicles tow eye.

Features

Top of Page

Standard

  • Aluminium Deck
  • Double Heavy Duty Rack and Pinion Drives
  • Power Assisted Fully Automatic Float Mechanism
  • Bed Rollers Mounted in End of Deck
  • 8 Lashing Rings on Deck (4 Per Side)
  • Galvanised Subframe and Tilt Frame
  • Front and Rear Body Locks
  • Simple One Button Operation
  • Hydraulic Winch with Wire Rope
  • Manual Sliding Winch Mechanism
  • Manual Winch Free Spool
  • LED Marker Lights Fitted into Side Raves (3 Per Side)
  • 4 Ratchet Straps with Soft Eyes
  • Manual Control Levers
  • Pump
  • Provision For 4 Position Side Winching Capstan
  • Aluminium Side Under-Run Protection
  • Winch Roller Guide
  • Cab Control Unit

Optional

  • Steel Deck
  • Additional Lashing Rings
  • Wheel Chocks (pair)
  • 2T Second Car Lift w/ Euro Wheel Grids
  • 2T Second Car Lift w/ Century Wheel Lift
  • Low Crash Bar
  • Full Height Beacon Flyer
  • 4 Function Radio Remote Control
  • Plastic Locker
  • Black Powder Coated Steel Locker
  • Polished Stainless Steel Locker
  • Fixed Granule Bin
  • 7 Pin Electrical Socket At Chassis Voltage
  • Towball Attachment
  • Wheel Skate Bed Ramps
  • Wheel Skates w/ Stowage (pair)
  • GoJaks 6200 w/ Stowage (pair)
  • Greedy Ramps w/ Stowage (pair)
  • Ferrari Ramps w/ Stowage (pair)
  • Wrecker Kit Stowed (Broom, Shovel, 7lb Sledge Hammer, 24” & 48” Bar,  Hard Hat & 6 Safety Cones)
  • 3T Trolley Jack Stowed in Locker
  • Dynacycle Motorcycle Frame w/ Stowage
  • Jump Leads
  • Jump Socket
  • LED Strobes Fitted into Front Grill (2x Amber)
  • LED Strobes at Rear (2x Amber or Red)
  • LED Beacon
  • LED Work Lights
  • LED Locker Lights
  • LED Marker Lights on Flyer (6x)
  • PTO
  • Side Winching Capstan Post
  • Plastic Rear Mudguards w/ Mudflaps

Specifications

Bed

Bed Length: 7M
Bed Width: 2.3M
Bed Rating: 5 Tonne UDL
Minimum Load Angle: 4 to 6 Degrees (Depending on Chassis)
Bed Construction: Aluminium Extrusions

Winch Capacity

Winch Capacity: 3.6 Tonne (EN14492 Compliant)
Cable Diameter & Length: 10mm x 24M
Cable Rating: 7.2 Tonne MBL

Important: All ratings are based on structural factors only, not vehicle capacities or capabilities. Specifications shown are approximations and may vary depending on chassis selected. Boniface Engineering, Ltd. reserves the right to change or modify product and/or specifications without notice or obligation. Some equipment shown is optional.
