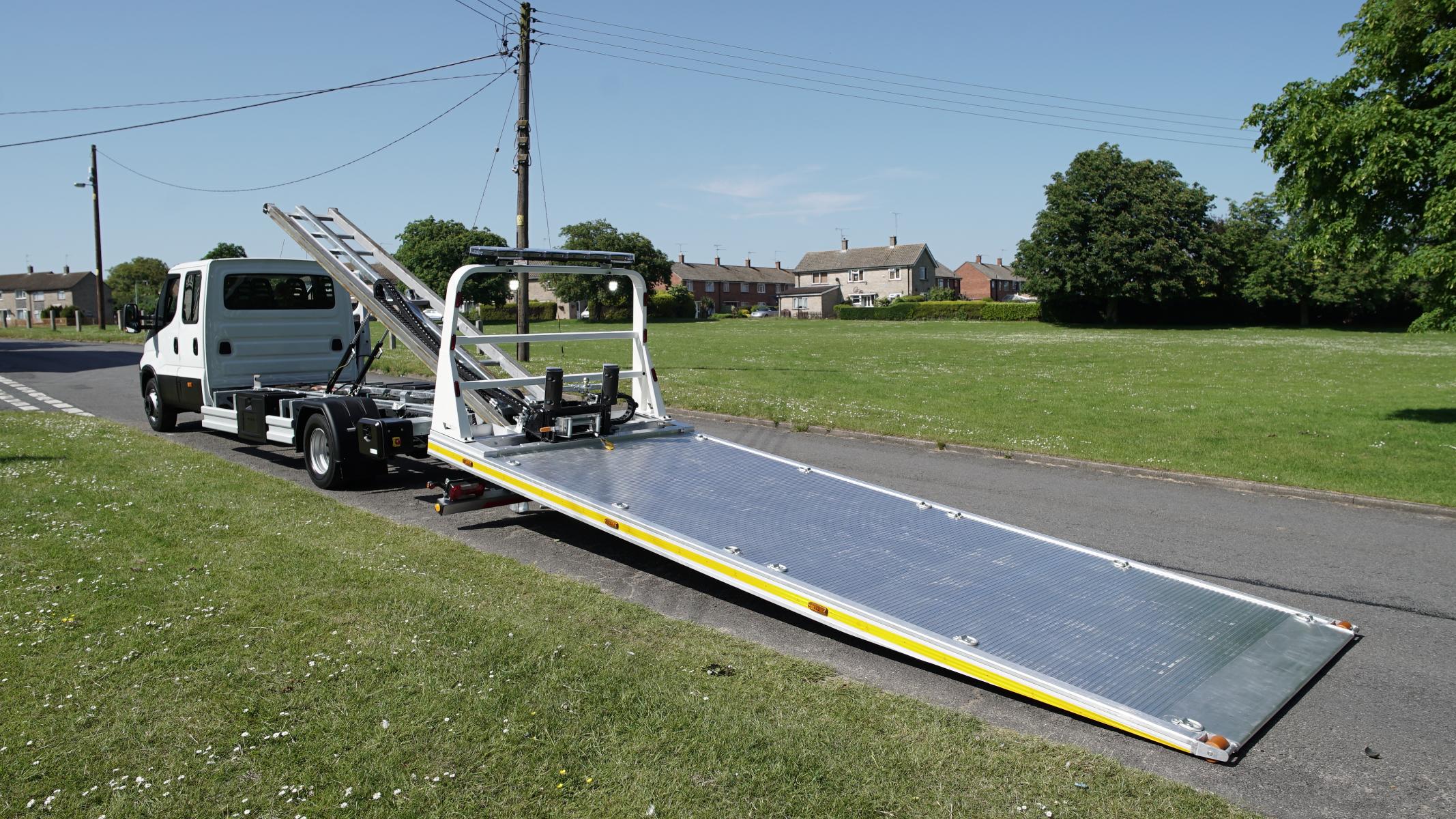

Boniface VLA 3T

With the increase in difficult to load low clearance prestige and sports cars on the roads today along with many vans that have long rear overhangs that drag when you try and load them on a conventional slidebed, the Boniface VLA 3T (Very Low Angle) solves the problem. No more using planks or ramps that look unprofessional and can easily move causing damage to expensive low spoilers. A heavy duty rack and pinion drive on the VLA moves the bed backwards and forwards allowing the bed to achieve a load angle between 4 and 6 degrees (depending on the chassis).

More +



The full floating tilt allows for an easy one button operation to move the bed fully on or off and complies with the latest safety directives. This prevents any movement of the equipment when the operator releases the controls by integrating a brake in the drive motor and a check valve on the cylinders.

The powered tilt rams enable loading on hills or even when the weight is at the rear of the bed. The durable lightweight aluminium deck provides for increased payload and the comes standard with a sliding hydraulic winch to allow you to maintain a straight pull on the disabled vehicles tow eye.

Features

Top of Page

Standard

  • Aluminium Deck
  • Heavy Duty Rack and Pinion Drive
  • Power Assisted Fully Automatic Float Mechanism
  • Bed Rollers Mounted in End of Deck
  • Galvanised Subframe and Tilt Frame
  • Front and Rear Body Locks
  • Simple One Button Operation
  • Hydraulic Winch with Wire Rope
  • Manual Sliding Winch Mechanism
  • Manual Winch Free Spool
  • LED Marker Lights Fitted into Side Raves (3 Per Side)
  • 4 Ratchet Straps with Soft Eyes
  • Manual Control Levers
  • 8 Lashing Rings on Deck (4 Per Side)
  • Pump
  • Provision For 4 Position Side Winching Capstan
  • Winch Roller Guide
  • Cab Control Unit
  • Plastic Rear Mudguards w/ Mudflaps

Optional

  • Low Crash Bar
  • Full Height Beacon Flyer
  • 4 Function Radio Remote Control
  • Plastic Locker
  • 7 Pin Electrical Socket At Chassis Voltage
  • Towball Attachment
  • Wheel Skate Bed Ramps
  • Wrecker Kit Stowed (Broom, Shovel, 7lb Sledge Hammer, 24” & 48” Bar,  Hard Hat & 6 Safety Cones)
  • Jump Leads
  • Jump Socket
  • LED Strobes Fitted into Front Grill (2x Amber)
  • LED Strobes at Rear (2x Amber)
  • LED Beacon
  • LED Work Lights
  • Aluminium Side Under-Run Protection
  • PTO
  • Additional Lashing Rings
  • Wheel Chocks (pair)
  • Wheel Skates w/ Stowage (pair)
  • GoJaks 6200 w/ Stowage (pair)
  • Greedy Ramps w/ Stowage (pair)
  • Dynacycle Motorcycle Frame w/ Stowage
  • Black Powder Coated Steel Locker
  • Polished Stainless Steel Locker
  • Side Winching Capstan Post

Specifications

Bed

Bed Length: 6.1M
Bed Width: 2.2M
Bed Rating: 3 Tonne UDL
Minimum Load Angle: 4 to 6 Degrees (Depending on Chassis)
Bed Construction: Aluminium Extrustion

Winch Capacity

Winch Capacity: 3.6 Tonne (EN14492 Compliant)
Cable Diameter & Length: 10mm x 24M
Cable Rating: 7.2 Tonne MBL

Important: All ratings are based on structural factors only, not vehicle capacities or capabilities. Specifications shown are approximations and may vary depending on chassis selected. Boniface Engineering, Ltd. reserves the right to change or modify product and/or specifications without notice or obligation. Some equipment shown is optional.
