Century 1075S

Power + Versatility = Performance

Rotator

Century rotators have set the industry standard for superior design and performance in heavy duty recovery equipment for years. Based on that same past knowledge and experience the 1075S has brought the rotator market to a whole new level.

More +

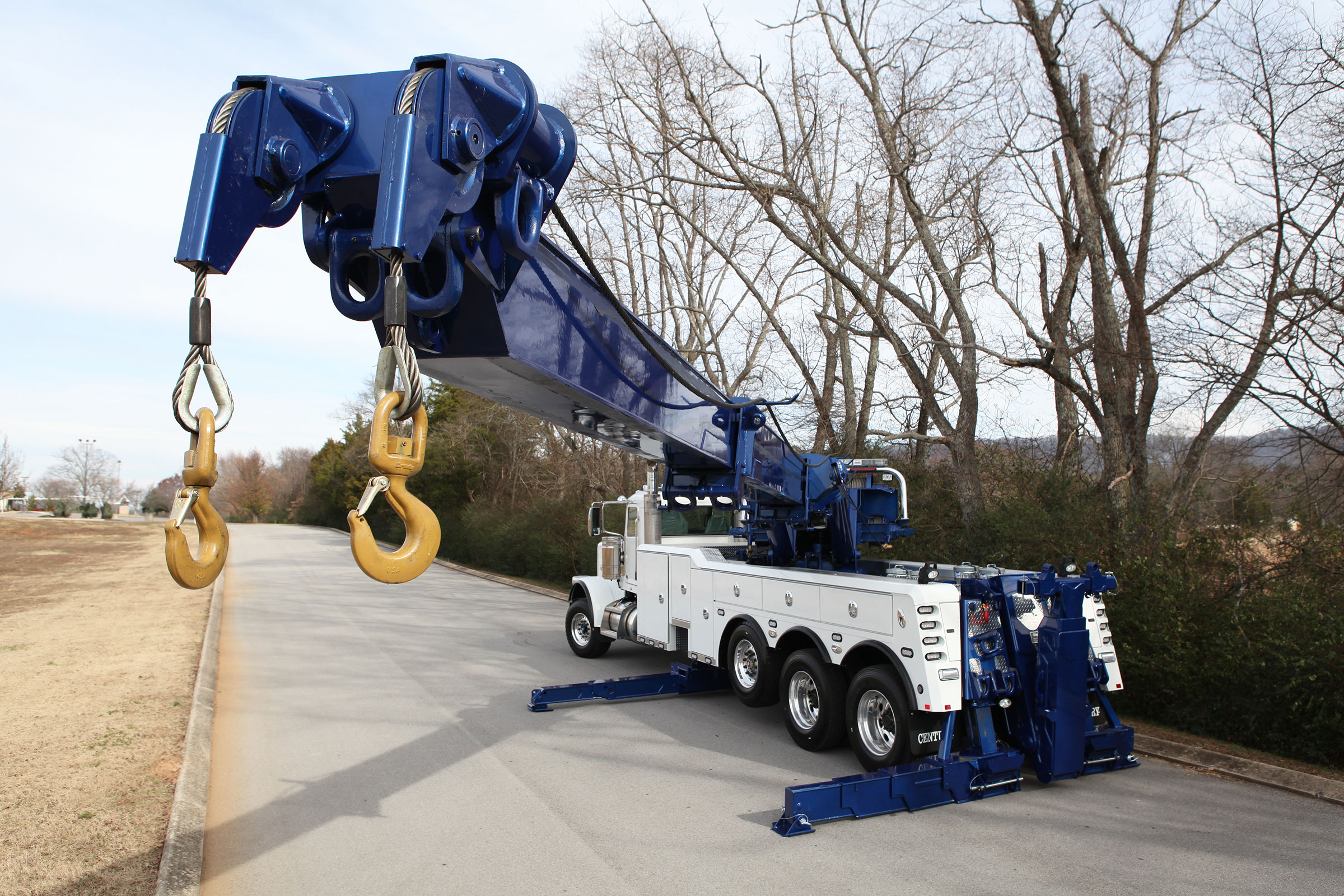

The Century 1075S rotator is fitted with 60,000lb planetary 2 speed winches, newly designed winch buckets, and increased boom reach to tackle he toughest recovery applications.

For supreme stability in a variety of situations Century’s Rotators are equipped with a hydraulic stabilization system that includes front hydraulic out riggers with over 432mm of spread and rear patented out riggers designed for stability, in lifting as well as anchoring your unit during those tough recoveries.

Features

Top of Page

Standard

  • Large Forward Compartments
  • Dual Speed Winches
  • Power Toolbox Compartment Locks
  • LED Toolbox Lighting
  • Mud Flaps
  • Gas Door Checks
  • Fork Stowage Bracket
  • Bubble Angle Indicators
  • “D” Rings on each Stage of the Boom
  • 1st Stage “D” Rings on the Tailboard
  • Safety Chains
  • Power Protections Valves
  • 1 Set of “D” ring Camlocks
  • 3-Stage Rear Hydraulic Outriggers
  • Tailboard Air/Electrical Hookups
  • Body Door Locks
  • Remote Control for Underlift
  • Door Checks
  • Rubber Fenderettes
  • Side Work lights
  • Dual Control Stations for Legs
  • Pressure Gauges
  • LED Tool Compartment Lights
  • 2 Position House Lock with Indicators
  • Rear Outriggers Spade Attachment
  • Aluminium Modular Body w/ Rubber Mounting Isolators
  • House Lock Window
  • Adjustable Shelves
  • LED Body Lighting
  • Chain Stowage
  • Tailboard Fork & Chain Stowage
  • Aluminium Tread-Plate Walkway
  • Driver Side Manual Controls
  • Hour Meter
  • Hydraulic Pump
  • Front Outriggers
  • 4-Stage Rear Outriggers
  • Large Outrigger Pads
  • Rotator Pylon Flyer
  • “D” Ring Package
  • Quick Connect Air
  • Safety Chain Roller

Boom

  • 360° Continuous Boom Rotation
  • Cable Tie Back (Boom)
  • Dual 2-Speed Planetary Winches
  • Power Elevation
  • Power Extension
  • Air Cable Tensioners
  • 360° Sheave Heads
  • Winch Air Free Spool
  • Boom Mounted “D” Rings & Cam Locks

Underlift

  • Boniface H-Maxireach Lowline
  • Boniface I Lowline
  • SDU4 Standard Low Rider
  • SDU4 (Without Dual H-Beams)
  • HHU (Rear H-Beam Only)
  • Coach Low Rider Underlift
  • 3-Stage Design
  • Low Profile 70° Pivoting Heavy Duty Fabricated Lift Bar
  • Power Tilt
  • Hydraulic Fold
  • Low Profile Fork Holders
  • Pivoting Spring Lift Adapters
  • Chain Hook End Caps
  • 9 Sets Of Cast Steel Forks

Optional

  • Sumo Sidewinder Front Legs
  • Sidewinder Mk3 Front Legs
  • Sidewinder SP850 Front Legs
  • Front Mounted 2-Stage H-Beam Outriggers 212” Stance (1150S)
  • Front Mounted 3-Stage H-Beam Outriggers (Standard On 1150S & 1150R)
  • 4-Stage Rear Legs
  • Rear 4-Stage Outriggers 220” Stance
  • Additional Lift Forks
  • Extension Stowage Compartment
  • Endless Loop Sling Package
  • Snatch Blocks
  • Snatch Block Stowage Rack
  • Halogen Work & Hook-Up Lighting
  • Wide Load Light Bar
  • Rear Camera & Monitor
  • Cab Control System
  • Tailboard Underlift Controls
  • Convenience Group (Rails & Steps)
  • Offset Fork Holder Extension
  • 3-Drawer Toolbox
  • 4-Drawer Toolbox
  • Folding Wash-down Sink
  • Heavy Duty Tyre Lift
  • Fork Riser Brackets
  • Pintle Hook Attachment
  • Trailer Ball Adapter (Requires Pintle Hook Attachment)
  • 5th Wheel Plate (Requires Pintle Hook Attachment)
  • Low Pull “D” Ring Kit
  • Chain Package
  • Recovery Straps
  • Light Bar
  • Xenon Boom Lights
  • Strobe Kits
  • Rear Air & Electrical Hook-Ups
  • Air Shift PTO
  • Manual Override Control for PTO
  • Aluminium Dress-Up Kits
  • Central locking for Lockers
  • Chain Hook Slide Adapter
  • Tailboard Cable Tiebacks
  • Additional Lighting
  • Stainless Steel Fenderettes
  • Front Outrigger Side Pull Attachment
  • Chain Rack Carousel
  • Foundry Hooks
  • Shackles
  • Spreader Bar
  • Rotator “D” Ring Package
  • Winch Bucket Mounted Aluminium Tubular Pylon Flyer
  • 24”, 30”, 36”, 48” Saddle Tunnel Box
  • Water Tank Kit

Specifications

Boom

Boom Structural Retracted Rating At 30° 63502kg (140000lb)
Boom Structural Extended Rating At 30° 16329kg (36000lb)
Maximum Hook Height 12319mm
Boom Maximum Angle 60 degree
Boom Rotation Angle 360 degree

Underlift

  SDU-4 H-Maxireach Lowline I-Lowline
Underlift Rating Extended 7711kg  (17000lb) by 3556mm 9000kg by 4295mm 9000kg by 3747mm
Underlift Rating Retracted 24947kg (55000lb) by 1371mm 33000kg by 1995mm 33000kg by 1813mm
Underlift Extendable By 2185mm (hydraulic) 2300mm (hydraulic) 1934mm (hydraulic)

Winch

Twin Winch Rating Each 27215kg (60000lb)
Winch Type Planetary 2-Speed
Air Cable Tensioner
Air Winch Clutch Release
Chassis Recommendation Minimum GVW  41000kg

Important: All ratings are based on structural factors only, not vehicle capacities or capabilities. Specifications shown are approximations and may vary depending on chassis selected. Boniface Engineering, Ltd. reserves the right to change or modify product and/or specifications without notice or obligation. Some equipment shown is optional.
